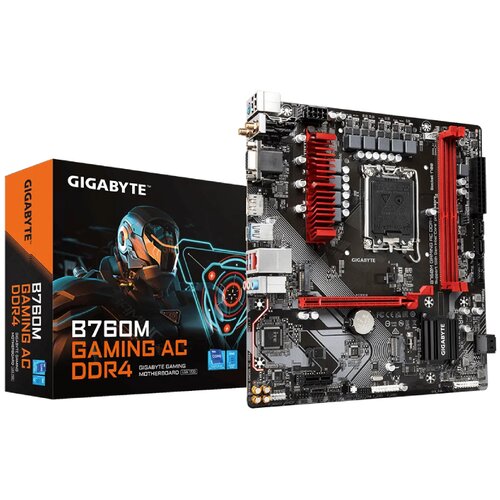

Gigabyte B760M GAMING AC DDR4 Motherboard - Supports Intel Core 14th CPUs, 6+2+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, Wi-Fi 802.11ac, 2.5GbE LAN, USB 3.2 Gen 1 cijene

Technical details
Warranty period: 3 year(s)

Processor
Processor socket: LGA 1700
Supported processor sockets: LGA 1700
Maximum number of SMP processors: 1
Compatible processor series: Intel Core i7, Intel Core i9, Intel Pentium Gold, Intel Core i3, Intel Core i5, Intel Celeron
Processor manufacturer: Intel

Graphics
DirectX version: 12.0
HDCP: Yes
Maximum resolution: 4096 x 2304 pixels
Parallel processing technology support: Not supported
Number of displays supported: 3

Features
Motherboard chipset: Intel B760 Express
Motherboard form factor: micro ATX
Audio output channels: 7.1 channels
PC health monitoring: Temperature, Water cooling, Voltage, Fan
Product colour: Bronze
Audio chip: Realtek ALC897
Motherboard chipset family: Intel
Power source type: ATX
Cooling type: Active
Windows operating systems supported: Windows 10, Windows 11

Memory
Supported memory clock speeds: 2133, 3000, 4133, 4000, 3666, 3733, 4300, 4400, 3200, 2666, 4266, 3466, 2400, 2933, 3600, 3300, 3800, 3333, 3400, 3866, 5333 MHz, 4600, 4800, 4933, 4500, 4700, 5000, 5133
Maximum internal memory: 64 GB
Unbuffered memory: Yes
Memory channels: Dualchannel
Number of memory slots: 4
Memory slots type: DIMM
Supported memory types: DDR4SDRAM
Supported memory clock speed (max): 5333 MHz
ECC ompatibility: ECC & NonECC

Weight & dimensions
Height: 35 mm
Width: 244 mm
Depth: 225 mm

Network
Bluetooth: Yes
Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
WiFi standards: 802.11b, 802.11a, 802.11g, WiFi 5 (802.11ac)
Top WiFi standard: WiFi 5 (802.11ac)
Bluetooth version: 5.0
WiFi: Yes

Internal I/O
Front panel audio connector: Yes
S/PDIF out connector: Yes
Number of SATA III connectors: 4
Thunderbolt headers: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
ATX Power connector (24pin): Yes
USB 2.0 connectors: 2
CPU fan connector: Yes
Number of chassis fan connectors: 3
Serial port headers: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
EPS power connector (8pin): Yes
Total number of SATA connectors: 4
RGB LED pin header: Yes
TPM connector: Yes
Front panel connector: Yes

BIOS
BIOS type: UEFI AMI
Desktop Management Interface (DMI) version: 2.7
Clear CMOS jumper: Yes
Clear CMOS button: Yes

Packaging data
Package weight: 1.15 kg
Package height: 68 mm
Package width: 270 mm
Package depth: 268 mm
Bundled software: Norton Internet Security (OEM version) LAN bandwidth management software

Packaging content
Drivers included: Yes
Batteries included: Yes
Cables included: SATA

Storage controllers
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
RAID levels: 10, 0, 5, 1
RAID support: Yes
Number of HDDs supported: 4
Number of storage drives supported: 6

Rear panel I/O ports
USB 2.0 ports quantity: 2
DisplayPorts quantity: 1
Ethernet LAN (RJ45) ports: 1
Headphone outputs: 1
USB 3.2 Gen 1 (3.1 Gen 1) TypeA ports quantity: 3
VGA (DSub) ports quantity: 1
Linein: Yes
HDMI version: 2.0
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) TypeC ports quantity: 1
Microphone in: Yes

Expansion slots
PCI Express x16 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 2
PCI Express x16 (Gen 4.x) slots: 1
1st M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 4.0
2nd M.2 highest PCI Express generation: 4.0
2nd M.2 largest key size: 2280

Battery
Battery weight: 3 g
Battery technology: LithiumManganese Dioxide (LiMnO2)
Battery type: CR2032
Number of battery cells: 1
Lithium weight per battery: 0.07 g

Logistics data
Country of origin: China
Products per shipping (inner) case: 1 pc(s)
