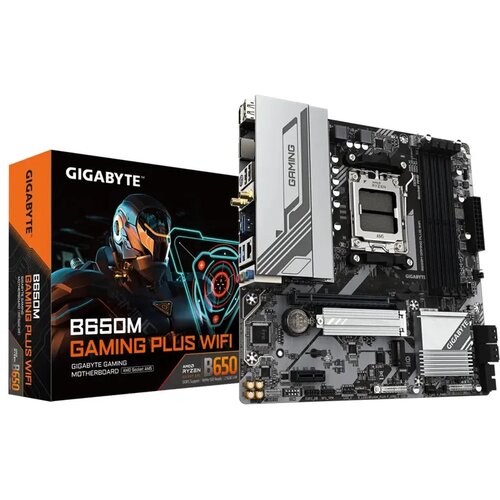

Gigabyte Motherboard AMD B650 SAM5 MATX /B650M GAMING PLUS WF cijene

Technical details
Warranty period: 3 year(s)

Processor
Supported processor sockets: Socket AM5
Compatible processor series: AMD Ryzen 9000 Series, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series
Processor manufacturer: AMD
Processor socket: Socket AM5

Graphics
HDCP: Yes
Parallel processing technology support: Not supported
Maximum resolution: 4096 x 2160 pixels
DirectX version: 12.0

Features
Audio output channels: 7.1 channels
Component for: PC
Cooling type: Passive
Motherboard chipset: AMD B650
Product colour: Dark brown
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Audio chip: Realtek ALC897
Motherboard form factor: micro ATX
Power source type: ATX
PC health monitoring: Fan, Voltage, Temperature
Motherboard chipset family: AMD

Memory
Supported memory clock speeds: 7000, 8000 MHz, 5200, 6600, 6000, 4800 MHz, 6400, 6200, 7600, 7800 MHz, 5600, 7200, 6800
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dualchannel
ECC ompatibility: NonECC
Maximum internal memory: 256 GB
Supported memory clock speed (max): 8000 MHz
Maximum internal memory per slot: 64 GB
Supported memory types: DDR5SDRAM
Unbuffered memory: Yes

Weight & dimensions
Width: 244 mm
Depth: 244 mm
Height: 35 mm

Network
WLAN controller model: Realtek RTL8852CE
Bluetooth: Yes
WiFi: Yes
Ethernet LAN: Yes
WiFi standards: WiFi 4 (802.11n), WiFi 5 (802.11ac), 802.11g, 802.11a, WiFi 6 (802.11ax), WiFi 6E (802.11ax), 802.11b
Top WiFi standard: WiFi 6E (802.11ax)
Ethernet interface type: 2.5 Gigabit Ethernet
LAN controller: Realtek RTL8125
Bluetooth version: 5.3

Internal I/O
ATX Power connector (24pin): Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
RGB LED pin header: Yes
Front panel audio connector: Yes
CPU fan connector: Yes
Number of SATA III connectors: 4
Front panel connector: Yes
TPM connector: Yes
Number of RGB LED pin headers: 3
EPS power connector (8pin): Yes
Number of chassis fan connectors: 2
Number of CPU fan connectors: 1
USB 2.0 connectors: 2
Number of EPS power connectors (8pin): 1

BIOS
BIOS memory size: 256 Mbit
Clear CMOS jumper: Yes
Desktop Management Interface (DMI) version: 2.7
BIOS type: UEFI AMI
System Management BIOS (SMBIOS) version: 2.7
ACPI version: 5.0

Packaging data
Package depth: 268 mm
Package width: 270 mm
Package weight: 1.53 kg
Package height: 68 mm
Bundled software: Norton Internet Security (OEM version) LAN bandwidth management software

Packaging content
Batteries included: Yes
Antenna included: Yes
Screws included: Yes

Storage controllers
RAID support: Yes
Number of storage drives supported: 6
Number of HDDs supported: 4
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III
RAID levels: 1, 10, 0

Rear panel I/O ports
WiFiAP antenna jack: 2
Microphone in: Yes
USB 3.2 Gen 1 (3.1 Gen 1) TypeA ports quantity: 3
DisplayPorts quantity: 2
Linein: Yes
DisplayPort version: 1.4
Ethernet LAN (RJ45) ports: 1
Headphone outputs: 1
USB 2.0 ports quantity: 2
HDMI version: 2.1
HDMI ports quantity: 1
PS/2 ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) TypeC ports quantity: 1

Expansion slots
PCI Express x1 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 2
PCI Express x16 (Gen 4.x) slots: 1
1st M.2 largest key size: 2580
2nd M.2 largest key size: 22110
1st M.2 highest PCI Express generation: 4.0
2nd M.2 highest PCI Express generation: 4.0

Battery
Battery weight: 3 g
Battery type: CR2032
Lithium weight per battery: 0.07 g
Number of battery cells: 1
Battery technology: LithiumManganese Dioxide (LiMnO2)

Other features
Weight: 1.44 kg

Logistics data
Products per shipping (inner) case: 1 pc(s)
