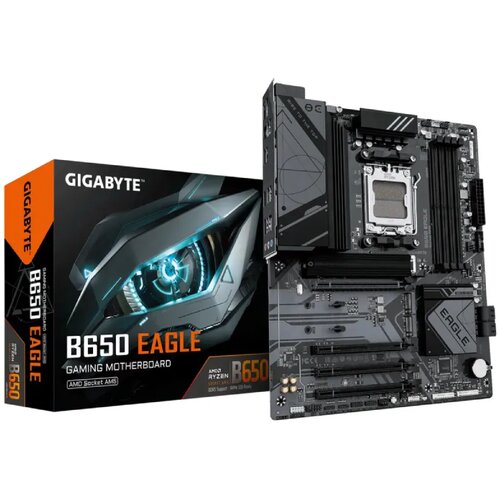

Gigabyte B650 EAGLE Motherboard - Supports AMD Ryzen 9000 CPUs, 12+2+2 Phases Digital VRM, up to 7600MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen2 cijene

Technical details
Warranty period: 3 year(s)

Processor
Processor socket: Socket AM5
Maximum internal memory supported by processor: 192 GB
Compatible processor series: AMD Ryzen 9 7th Gen, AMD Ryzen 5, AMD Ryzen 7 7th Gen
Processor manufacturer: AMD
Supported processor sockets: Socket AM5

Graphics
HDCP: Yes
Maximum resolution: 4096 x 2160 pixels
Parallel processing technology support: Not supported
DirectX version: 12.0

Features
Windows operating systems supported: Windows 11 x64, Windows 10 x64
PC health monitoring: Fan, Water cooling, Voltage, Temperature
Motherboard form factor: ATX
Audio output channels: 7.1 channels
Motherboard chipset family: AMD
Power source type: ATX
Product colour: Bronze
Audio chip: Realtek ALC897
Motherboard chipset: AMD B650
Cooling type: Active

Memory
Memory slots type: DIMM
Number of memory slots: 4
Memory channels: Dualchannel
Supported memory types: DDR5SDRAM
Supported memory clock speed (max): 7600 MHz
Supported memory clock speeds: 5200, 6000, 6800, 7000, 6600, 4800, 4400, 5600, 7200, 6200, 7600, 6400
Maximum internal memory: 192 GB
Supported memory module capacities: 16GB, 12GB, 2GB, 4GB, 48GB, 8GB, 1GB, 40GB, 32GB
Unbuffered memory: Yes

Weight & dimensions
Width: 305 mm
Depth: 244 mm
Height: 35 mm

Network
WiFi: No
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet

Internal I/O
Front panel connector: Yes
RGB LED pin header: Yes
Total number of SATA connectors: 4
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
TPM connector: Yes
12V power connector: Yes
Number of SATA III connectors: 4
USB 2.0 connectors: 3
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Serial port headers: 1
Front panel audio connector: Yes
ATX Power connector (24pin): Yes
CPU fan connector: Yes
EPS power connector (8pin): Yes

BIOS
Desktop Management Interface (DMI) version: 2.7
Clear CMOS jumper: Yes
Clear CMOS button: Yes
BIOS type: UEFI AMI

Packaging data
Package width: 335 mm
Package height: 80 mm
Package depth: 270 mm
Package weight: 1.82 kg
Bundled software: Norton Internet Security (OEM version) LAN bandwidth management software

Packaging content
Cables included: SATA
Batteries included: Yes

Storage controllers
Number of HDDs supported: 4
Number of storage drives supported: 7
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III
RAID support: Yes
RAID levels: 1, 0, 10

Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) TypeA ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) TypeC ports quantity: 1
HDMI ports quantity: 1
Headphone outputs: 3
WiFiAP antenna jack: 2
Microphone in: Yes
HDMI version: 2.1
DisplayPorts quantity: 1
USB 2.0 ports quantity: 6
DisplayPort version: 1.4
USB connector type: USB TypeA, USB TypeC
Ethernet LAN (RJ45) ports: 1

Expansion slots
PCI Express x16 slots: 3
Number of M.2 (M) slots: 3

Battery
Number of battery cells: 1
Battery technology: LithiumManganese Dioxide (LiMnO2)
Battery weight: 3 g
Battery type: CR2032
Lithium weight per battery: 0.07 g

Logistics data
Products per shipping (inner) case: 1 pc(s)
Country of origin: China
