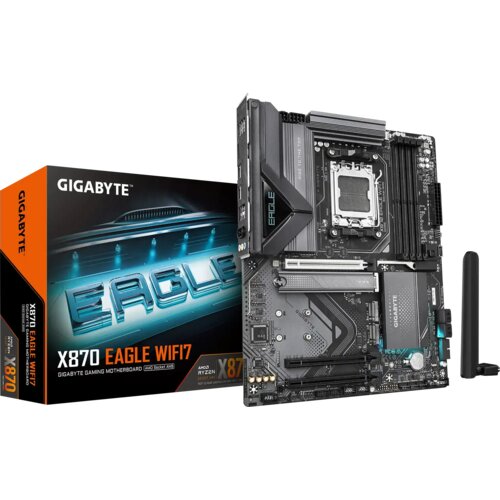

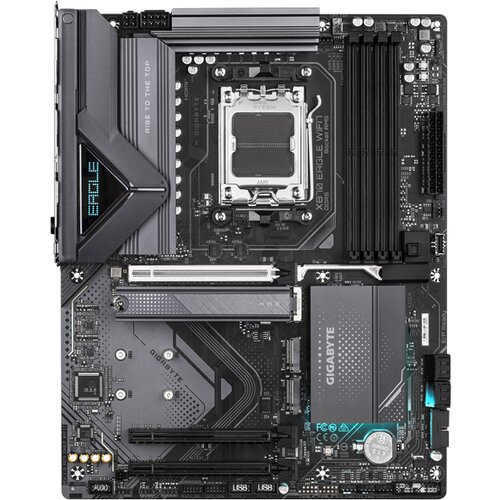

Gigabyte X870 EAGLE WIFI7 Motherboard - Supports AMD Ryzen 9000 CPUs, 14+2+2 phases VRM, up to 8000MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 7, 2.5GbE LAN, USB 4 cijene

Technical details
Warranty period: 3 year(s)

Processor
Supported processor sockets: Socket AM5
Processor manufacturer: AMD
Processor socket: Socket AM5
Maximum internal memory supported by processor: 256 GB
Compatible processor series: AMD Ryzen 7

Graphics
Onboard graphics card: No
DirectX version: 12.0

Features
Windows operating systems supported: Windows 11 x64
Motherboard chipset family: AMD
PC health monitoring: Fan, Temperature, Voltage
Motherboard form factor: ATX
Audio output channels: 7.1 channels
Motherboard chipset: AMD X870
Product colour: Black

Memory
Supported memory module capacities: 16GB, 48GB, 32GB, 64GB, 24GB, 1GB, 40GB, 8GB, 2GB, 4GB
Supported memory clock speeds: 6400, 8000 MHz, 7600, 5200, 6200, 6666, 6600, 6000, 7000, 4800, 4400, 6800, 7800, 5600, 7200
Supported memory types: DDR5SDRAM
Number of memory slots: 4
Memory channels: Dualchannel
Maximum internal memory: 256 GB
Memory slots type: DIMM
Supported memory clock speed (max): 8000 MHz

Weight & dimensions
Height: 35 mm
Depth: 244 mm
Width: 305 mm

Network
WiFi standards: WiFi 7 (802.11be)
WiFi: Yes
Bluetooth: Yes
Ethernet LAN: Yes
Bluetooth version: 5.4
Top WiFi standard: WiFi 7 (802.11be)
Ethernet interface type: 2.5 Gigabit Ethernet
WLAN controller model: MediaTek MT7925

Internal I/O
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
12V power connector: Yes
EPS power connector (8pin): Yes
RGB LED pin header: Yes
Number of SATA III connectors: 4
Total number of SATA connectors: 4
USB 2.0 connectors: 2
TPM connector: Yes
ATX Power connector (24pin): Yes
USB 3.2 Gen 2x2 connectors: 1

BIOS
BIOS type: UEFI AMI
Clear CMOS button: Yes
Clear CMOS jumper: Yes
Desktop Management Interface (DMI) version: 2.7

Packaging data
Package weight: 1.94 kg
Package depth: 270 mm
Package width: 335 mm
Package height: 80 mm
Bundled software: Norton Internet Security (OEM version) LAN bandwidth management software

Packaging content
Batteries included: Yes

Storage controllers
RAID levels: 10, 1, 0
Supported storage drive types: HDD & SSD
Number of HDDs supported: 7
RAID support: Yes
Number of storage drives supported: 4
Supported storage drive interfaces: M.2, SATA III

Rear panel I/O ports
DisplayPorts quantity: 2
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) TypeA ports quantity: 3
Microphone in: Yes
Ethernet LAN (RJ45) ports: 1
USB 3.2 Gen 2 (3.1 Gen 2) TypeA ports quantity: 1
USB 2.0 ports quantity: 4
S/PDIF out port: Yes
USB4 Gen 2x2 ports quantity: 2

Expansion slots
PCI Express x4 slots: 2
Number of M.2 (M) slots: 3
PCI Express x16 (Gen 5.x) slots: 1

Battery
Battery technology: LithiumManganese Dioxide (LiMnO2)
Battery type: CR2032
Battery weight: 3 g
Number of battery cells: 1
Lithium weight per battery: 0.07 g

Other features
Weight: 1.74 kg

Logistics data
Country of origin: China
Products per shipping (inner) case: 1 pc(s)
