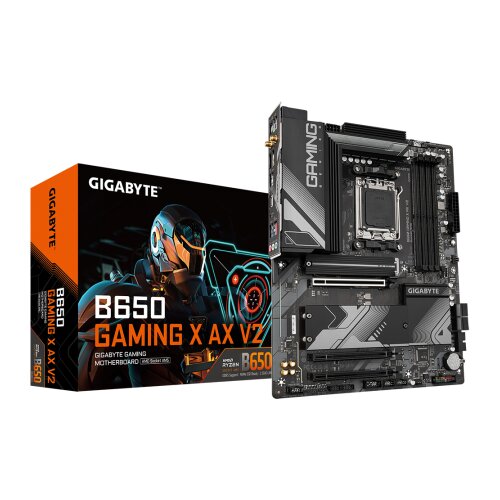

Gigabyte B650 GAMING X AX V2 Motherboard - Supports AMD Ryzen 8000 CPUs, 8+2+2 Phases Digital VRM, up to 8000MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, Wi-Fi 6E 802.11ax, 2.5GbE LAN, USB 3.2 Gen 2 cijene

Technical details
Warranty period: 3 year(s)

Processor
Processor socket: Socket AM5
Compatible processor series: AMD Ryzen 5, AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen
Supported processor sockets: Socket AM5
Maximum internal memory supported by processor: 192 GB
Processor manufacturer: AMD

Graphics
HDCP: Yes
Maximum resolution: 4096 x 2160 pixels
Parallel processing technology support: Not supported

Features
Motherboard chipset: AMD B650
Audio chip: Realtek ALC897
Product colour: Black
Audio output channels: 7.1 channels
PC health monitoring: Fan, Water cooling, Temperature, Voltage
Power source type: ATX
Motherboard form factor: ATX
Motherboard chipset family: AMD
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Cooling type: Active

Memory
Supported memory clock speeds: 4800, 4400, 7600, 7800, 6000, 6200, 5600, 7200, 6600, 6400, 5200, 6800, 8000 MHz, 7000
Maximum internal memory: 192 GB
Unbuffered memory: Yes
Supported memory module capacities: 8GB, 16GB, 12GB, 32GB, 2GB, 4GB, 1GB, 48GB
Number of memory slots: 4
Memory channels: Dualchannel
Memory slots type: DIMM
Supported memory types: DDR5SDRAM
Supported memory clock speed (max): 8000 MHz

Weight & dimensions
Height: 35 mm
Width: 305 mm
Depth: 244 mm

Network
Bluetooth: Yes
WiFi standards: WiFi 5 (802.11ac), 802.11a, WiFi 6 (802.11ax), 802.11b, WiFi 6E (802.11ax), 802.11g, WiFi 4 (802.11n)
Top WiFi standard: WiFi 6E (802.11ax)
Bluetooth version: 5.2
Ethernet LAN: Yes
WLAN controller model: AMD RZ616
Ethernet interface type: 2.5 Gigabit Ethernet
WiFi: Yes

Internal I/O
Number of SATA III connectors: 4
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
EPS power connector (8pin): Yes
Front panel audio connector: Yes
Serial port headers: 1
ATX Power connector (24pin): Yes
12V power connector: Yes
RGB LED pin header: Yes
Front panel connector: Yes
TPM connector: Yes
CPU fan connector: Yes

BIOS
Clear CMOS jumper: Yes
Desktop Management Interface (DMI) version: 2.7
BIOS type: UEFI AMI
Clear CMOS button: Yes

Packaging data
Package weight: 1.96 kg
Package height: 80 mm
Package width: 335 mm
Package depth: 270 mm
Bundled software: Norton Internet Security (OEM version) LAN bandwidth management software

Packaging content
Cables included: SATA
Batteries included: Yes

Storage controllers
Supported storage drive types: HDD & SSD
RAID support: Yes
Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III
RAID levels: 0, 1, 10
Number of HDDs supported: 1
Number of storage drives supported: 5

Rear panel I/O ports
DisplayPort version: 1.4
DisplayPorts quantity: 1
Microphone in: Yes
WiFiAP antenna jack: 2
HDMI version: 2.1
USB 3.2 Gen 2 (3.1 Gen 2) TypeA ports quantity: 1
USB 2.0 ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) TypeA ports quantity: 3
Headphone outputs: 3
USB connector type: USB TypeA, USB TypeC
Ethernet LAN (RJ45) ports: 1
USB 3.2 Gen 2 (3.1 Gen 2) TypeC ports quantity: 1
HDMI ports quantity: 1

Expansion slots
PCI Express x16 slots: 3
Number of M.2 (M) slots: 3

Battery
Lithium weight per battery: 0.07 g
Battery weight: 3 g
Battery technology: LithiumManganese Dioxide (LiMnO2)
Battery type: CR2032
Number of battery cells: 1

Logistics data
Country of origin: China
Products per shipping (inner) case: 1 pc(s)
