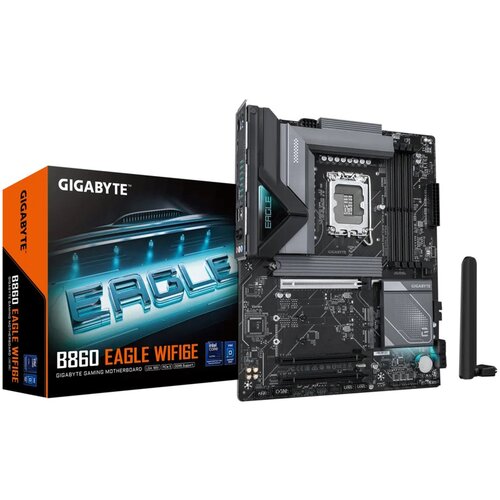

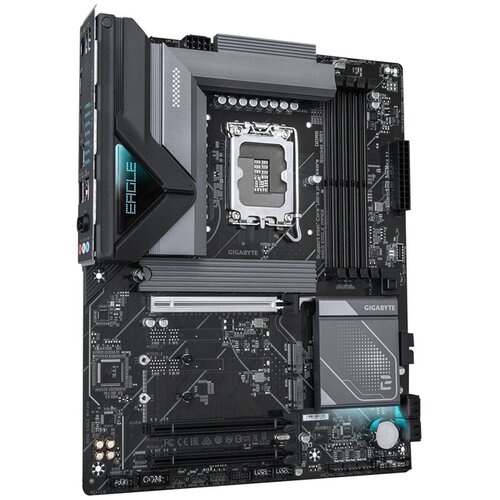

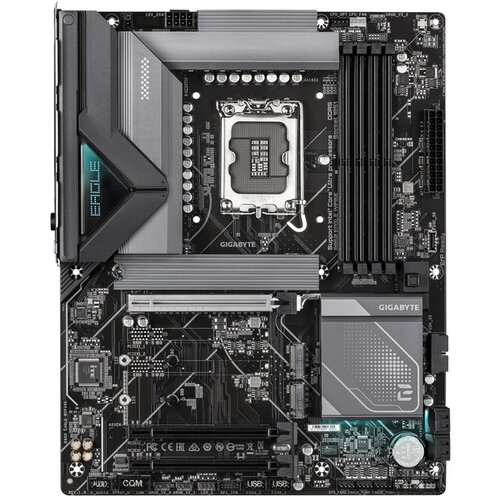

Gigabyte B860 EAGLE WIFI6E Motherboard - Intel Core Ultra Series CPUs, 12+1+2+1 Phases VRM, up to 9066MHz DDR5, 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 3.2 Gen 2x2 cijene

Technical details
Warranty period: 3 year(s)

Processor
Processor manufacturer: Intel
Supported processor sockets: LGA 1851
Processor socket: LGA 1851 (Socket V1)
Compatible processor series: Intel Core Ultra (Series 1), Intel Core Ultra (Series 2)

Graphics
DirectX version: 12.0
Maximum resolution: 4096 x 2160 pixels
HDCP: Yes
Parallel processing technology support: Not supported

Features
Windows operating systems supported: Windows 11 x64, Windows 10 x64
PC health monitoring: Water cooling, Voltage, Temperature, Fan
Audio output channels: 7.1 channels
Component for: PC
Motherboard form factor: ATX
Power source type: ATX
Cooling type: Passive
Motherboard chipset: Intel B860
Audio chip: Realtek ALC897
Motherboard chipset family: Intel
Product colour: Dark brown

Memory
Maximum internal memory: 256 GB
Unbuffered memory: Yes
Memory channels: Dualchannel
Supported memory clock speeds: 9066, 6400, 5600
Supported memory types: DDR5SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Supported memory clock speed (max): 9066 MHz
Maximum internal memory per slot: 64 GB
ECC ompatibility: ECC & NonECC

Weight & dimensions
Depth: 244 mm
Height: 35 mm
Width: 305 mm

Network
Top WiFi standard: WiFi 6E (802.11ax)
WiFi standards: 802.11b, WiFi 6E (802.11ax), 802.11a, WiFi 6 (802.11ax), 802.11g, WiFi 4 (802.11n), WiFi 5 (802.11ac)
LAN controller: Realtek RTL8125D
Bluetooth: Yes
WLAN controller model: Intel WiFi 6E AX211
Bluetooth version: 5.3
WiFi: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN: Yes

Internal I/O
Serial port headers: 1
Number of SATA III connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
S/PDIF out connector: Yes
Number of chassis fan connectors: 4
Front panel audio connector: Yes
EPS power connector (8pin): Yes
USB 2.0 connectors: 2
ATX Power connector (24pin): Yes
TPM connector: Yes
Front panel connector: Yes
CPU fan connector: Yes
RGB LED pin header: Yes
Number of water pump connectors: 3
Number of CPU fan connectors: 2
Number of RGB LED pin headers: 4
Number of EPS power connectors (8pin): 1

BIOS
Clear CMOS jumper: Yes
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
ACPI version: 5.0
System Management BIOS (SMBIOS) version: 2.7
Desktop Management Interface (DMI) version: 2.7

Packaging data
Package width: 335 mm
Package height: 80 mm
Package weight: 1.92 kg
Package depth: 270 mm
Bundled software: Norton Internet Security (OEM version) LAN bandwidth management software

Packaging content
Screws included: Yes
Antenna included: Yes
Batteries included: Yes

Storage controllers
Supported storage drive types: HDD & SSD
RAID levels: 0, 5, 1, 10
Supported storage drive interfaces: M.2, SATA III
RAID support: Yes
Number of storage drives supported: 7
Number of HDDs supported: 4

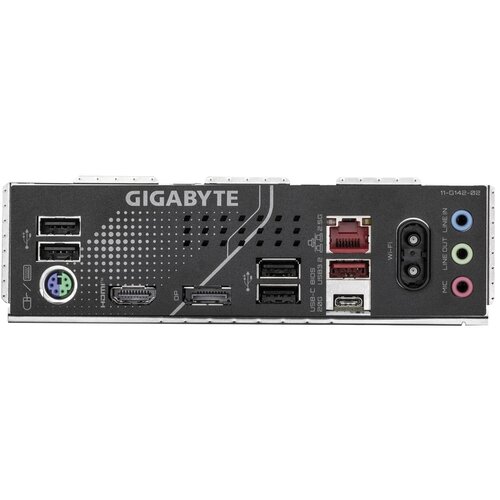

Rear panel I/O ports
DisplayPorts quantity: 1
DisplayPort version: 2.1
HDMI ports quantity: 1
HDMI version: 2.1
USB 3.2 Gen 2 (3.1 Gen 2) TypeA ports quantity: 1
USB 2.0 ports quantity: 4
Ethernet LAN (RJ45) ports: 1
PS/2 ports quantity: 1
Headphone outputs: 1
WiFiAP antenna jack: 2
USB 3.2 Gen 2x2 TypeC ports quantity: 1
Microphone in: Yes
Linein: Yes

Expansion slots
Number of M.2 (M) slots: 3
PCI Express x16 (Gen 4.x) slots: 2
PCI Express x16 (Gen 5.x) slots: 1
1st M.2 highest PCI Express generation: 5.0
2nd M.2 largest key size: 25110
1st M.2 largest key size: 25110
3rd M.2 highest PCI Express generation: 4.0
2nd M.2 highest PCI Express generation: 4.0
3rd M.2 largest key size: 25110

Battery
Battery technology: LithiumManganese Dioxide (LiMnO2)
Battery type: CR2032
Number of battery cells: 1
Battery weight: 3 g
Lithium weight per battery: 0.07 g

Other features
Weight: 1.72 kg

Logistics data
Country of origin: China
Products per shipping (inner) case: 1 pc(s)
