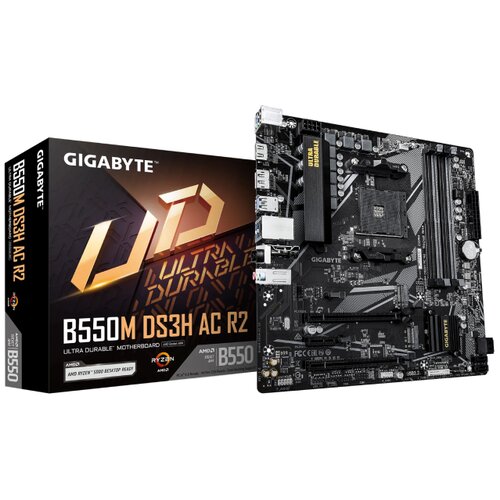

Gigabyte B550M DS3H AC R2 Motherboard - AMD Ryzen 5000 CPUs, 5+3 Phases VRM, up to 4733MHz DDR4 (O.C.), 1xPCIe 4.0 + 1xPCIe 3.0 M.2, Wi-Fi 5, 1GbE LAN, USB 3.2 Gen 1 cijene

Technical details
Warranty period: 3 year(s)

Processor
Processor socket: Socket AM4
Supported processor sockets: Socket AM4
Processor manufacturer: AMD
Compatible processor series: AMD Ryzen 4000 Series, AMD Ryzen 5000 Series, AMD Ryzen 3000 Series

Graphics
Parallel processing technology support: Not supported
Maximum resolution: 5120 x 2880 pixels
Onboard graphics card: No
HDCP: Yes
DirectX version: 12.0

Features
Power source type: ATX
Motherboard chipset family: AMD
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Component for: PC
Cooling type: Passive
PC health monitoring: Fan, Temperature, Voltage
Audio output channels: 7.1 channels
Motherboard form factor: micro ATX
Product colour: Dark brown
Motherboard chipset: AMD B550
Audio chip: Realtek ALC1220VB

Memory
Memory channels: Dualchannel
Supported memory types: DDR4SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Supported memory clock speed (max): 4733 MHz
Supported memory clock speeds: 3466, 2133, 2667, 3733, 4400, 4133, 4000, 3200, 4266, 4600, 2933, 3600, 4733 MHz, 3400, 3866, 2400
ECC ompatibility: ECC & NonECC
Maximum internal memory: 128 GB
Maximum internal memory per slot: 32 GB
Unbuffered memory: Yes

Weight & dimensions
Width: 244 mm
Height: 35 mm
Depth: 244 mm

Network
WiFi standards: WiFi 5 (802.11ac), 802.11g, WiFi 4 (802.11n), 802.11a, 802.11b
Bluetooth version: 5.0
WLAN controller model: Realtek RTL8821CE
WiFi: Yes
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
Top WiFi standard: WiFi 5 (802.11ac)
Bluetooth: Yes
LAN controller: Realtek RTL8111H

Internal I/O
ATX Power connector (24pin): Yes
EPS power connector (8pin): Yes
Number of SATA III connectors: 4
CPU fan connector: Yes
TPM connector: Yes
Number of chassis fan connectors: 2
Front panel connector: Yes
Front panel audio connector: Yes
RGB LED pin header: Yes
Serial port headers: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of RGB LED pin headers: 5
Number of CPU fan connectors: 1
USB 2.0 connectors: 1
Number of EPS power connectors (8pin): 1

BIOS
ACPI version: 5.0
Desktop Management Interface (DMI) version: 2.7
Clear CMOS jumper: Yes
BIOS memory size: 128 Mbit
System Management BIOS (SMBIOS) version: 2.7
BIOS type: UEFI AMI

Packaging data
Package width: 270 mm
Package depth: 268 mm
Package height: 68 mm
Package weight: 1.07 kg
Bundled software: Norton Internet Security (OEM version) LAN bandwidth management software

Packaging content
Screws included: Yes
Antenna included: Yes
Batteries included: Yes

Storage controllers
RAID support: Yes
RAID levels: 10, 0, 1
Number of storage drives supported: 6
Number of HDDs supported: 4
Supported storage drive interfaces: M.2, PCI Express 3.0, PCI Express 4.0, SATA III
Supported storage drive types: HDD & SSD

Rear panel I/O ports
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) TypeA ports quantity: 4
Ethernet LAN (RJ45) ports: 1
Headphone outputs: 1
PS/2 ports quantity: 1
Microphone in: Yes
HDMI version: 2.1
WiFiAP antenna jack: 2
Linein: Yes
USB 2.0 ports quantity: 2
DisplayPort version: 1.4
DisplayPorts quantity: 1

Expansion slots
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x1 (Gen 3.x) slots: 1
PCI Express x16 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 2
2nd M.2 highest PCI Express generation: 3.0
1st M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 4.0
2nd M.2 largest key size: 2280

Battery
Number of battery cells: 1
Battery technology: LithiumManganese Dioxide (LiMnO2)
Battery weight: 3 g
Battery type: CR2032
Lithium weight per battery: 0.07 g

Other features
Weight: 980 g

Logistics data
Products per shipping (inner) case: 1 pc(s)
