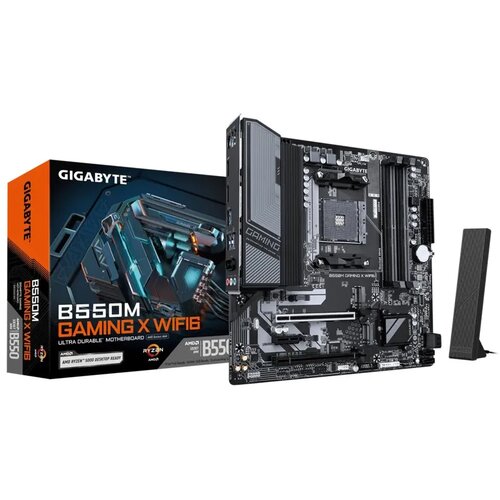

B550M GAMING X WIFI6 (B550,AM4,mATX,DDR4) Motherboard cijene

Technical details
Warranty period: 3 year(s)

Processor
Processor manufacturer: AMD
Supported processor sockets: Socket AM4
Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series
Processor socket: Socket AM4

Graphics
HDCP: Yes
Parallel processing technology support: Not supported
DirectX version: 12.0
Maximum resolution: 5120 x 2880 pixels

Features
Component for: PC
Windows operating systems supported: Windows 11 x64, Windows 10 x64
PC health monitoring: Fan, Voltage, Temperature
Product colour: Dark brown
Audio chip: Realtek ALC1220VB
Cooling type: Passive
Motherboard chipset: AMD B550
Motherboard form factor: micro ATX
Audio output channels: 7.1 channels
Motherboard chipset family: AMD
Power source type: ATX

Memory
Supported memory clock speed (max): 3200 MHz
Number of memory slots: 4
Memory slots type: DIMM
ECC ompatibility: ECC & NonECC
Maximum internal memory per slot: 32 GB
Memory channels: Dualchannel
Supported memory types: DDR4SDRAM
Supported memory clock speeds: 2667, 2933, 2133 MHz, 2400, 3200
Maximum internal memory: 128 GB
Unbuffered memory: Yes

Weight & dimensions
Height: 35 mm
Width: 244 mm
Depth: 244 mm

Network
WiFi standards: WiFi 5 (802.11ac), WiFi 4 (802.11n), 802.11b, 802.11a, WiFi 6 (802.11ax), 802.11g
Top WiFi standard: WiFi 6 (802.11ax)
Bluetooth version: 5.3
WLAN controller model: Realtek RTL8851BE
Ethernet LAN: Yes
WiFi: Yes
Ethernet interface type: Gigabit Ethernet
Bluetooth: Yes
LAN controller: Realtek RTL8111H

Internal I/O
EPS power connector (8pin): Yes
TPM connector: Yes
Number of CPU fan connectors: 1
Number of RGB LED pin headers: 5
Front panel connector: Yes
Number of EPS power connectors (8pin): 1
RGB LED pin header: Yes
Front panel audio connector: Yes
USB 2.0 connectors: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of chassis fan connectors: 2
CPU fan connector: Yes
Serial port headers: 1
Number of SATA III connectors: 4
ATX Power connector (24pin): Yes

BIOS
BIOS memory size: 128 Mbit
Clear CMOS jumper: Yes
ACPI version: 5.0
System Management BIOS (SMBIOS) version: 2.7
Desktop Management Interface (DMI) version: 2.7
BIOS type: UEFI AMI

Packaging data
Package depth: 268 mm
Package height: 68 mm
Package width: 270 mm
Package weight: 1.24 kg
Bundled software: Norton Internet Security (OEM version) LAN bandwidth management software

Packaging content
Screws included: Yes
Antenna included: Yes
Batteries included: Yes

Storage controllers
Number of HDDs supported: 4
Number of storage drives supported: 6
RAID levels: 10, 1, 0
Supported storage drive interfaces: M.2, PCI Express 3.0, PCI Express 4.0, SATA III
RAID support: Yes
Supported storage drive types: HDD & SSD

Rear panel I/O ports
HDMI version: 2.1
USB 3.2 Gen 1 (3.1 Gen 1) TypeA ports quantity: 4
PS/2 ports quantity: 1
HDMI ports quantity: 1
Linein: Yes
WiFiAP antenna jack: 2
Microphone in: Yes
Headphone outputs: 1
Ethernet LAN (RJ45) ports: 1
DisplayPort version: 1.4
USB 2.0 ports quantity: 2
DisplayPorts quantity: 1

Expansion slots
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 2
PCI Express x1 (Gen 3.x) slots: 1
1st M.2 largest key size: 2280
2nd M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 4.0
2nd M.2 highest PCI Express generation: 3.0

Battery
Lithium weight per battery: 0.07 g
Battery technology: LithiumManganese Dioxide (LiMnO2)
Battery type: CR2032
Number of battery cells: 1
Battery weight: 3 g

Other features
Weight: 1.14 kg

Logistics data
Products per shipping (inner) case: 1 pc(s)
