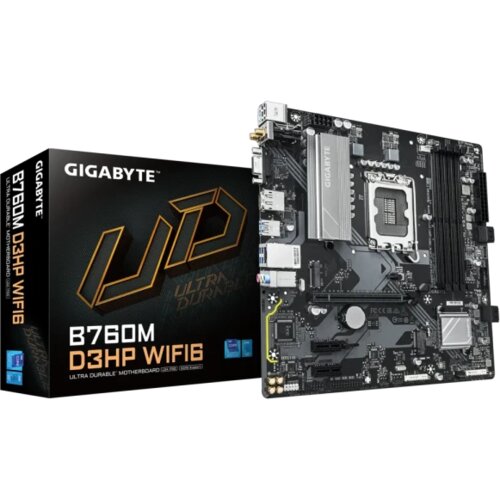

Gigabyte GA-B760M D3HP WIFI6 (1700) (D) Slike

Gigabyte GA-B760M D3HP WIFI6 (1700) (D) | shoptok.hr

Više slika (+1)

Gigabyte GA-B760M D3HP WIFI6 (1700) (D) cijene

Name: Gigabyte GA-B760M D3HP WIFI6 (1700) (D)
Brand: Gigabyte
SKU: 36426728
Availability: InStock

144,40 €

Više o ponudi

Gigabyte GA-B760M D3HP WIFI6 (1700) (D)

Trenutno najbolja ponuda:

144.4 EUR u Tia mobiteli

Više o ponudi Prikaži trgovine (1)

Usporedi cijene (1)
Opis i karakteristike
Promjena cijene
Recenzije

Gigabyte MB B760 S1700 MATX /B760M D3HP Mainboard

Na zalihama

144,40 €

Više o ponudi

Na zalihama

Više o ponudi

Gdje se moj proizvod uklapa? Prikazani su najpopularniji proizvodi u svakom cjenovnom rangu. Grafikon prikazuje kretanje potražnje. Možeš promijeniti prikaz odabirom proizvoda ili klikom na gumb.

Opis i karakteristike

Technical details
Warranty period: 3 year(s)

Processor
Supported processor sockets: LGA 1700
Processor socket: LGA 1700
Compatible processor series: Intel Core i5 12th Gen, Intel Core i7 14th Gen, Intel Core i9 14th Gen, Intel Core i3 14th Gen, Intel Core i3 12th Gen, Intel Core i5 13th Gen, Intel Core i9 12th Gen, Intel Core i7 13th Gen, Intel Pentium Gold, Intel Core i7 12th Gen, Intel Core i5 14th Gen, Intel Core i9 13th Gen, Intel Celeron, Intel Core i3 13th Gen
Processor manufacturer: Intel

Graphics
Maximum resolution: 4096 x 2304 pixels
Parallel processing technology support: Not supported
DirectX version: 12.0
HDCP: Yes

Features
Motherboard form factor: micro ATX
Motherboard chipset family: Intel
Power source type: ATX
Component for: PC
Cooling type: Passive
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Audio output channels: 7.1 channels
PC health monitoring: Water cooling, Temperature, Fan, Voltage
Product colour: Dark brown
Audio chip: Realtek ALC897
Motherboard chipset: Intel B760 Express

Memory
Memory slots type: DIMM
Supported memory clock speed (max): 5600 MHz
Number of memory slots: 4
Supported memory types: DDR5SDRAM
Memory channels: Dualchannel
Supported memory clock speeds: 4800, 5200, 5600, 4400
Maximum internal memory: 192 GB
Maximum internal memory per slot: 48 GB
Unbuffered memory: Yes
ECC ompatibility: ECC & NonECC

Weight & dimensions
Depth: 244 mm
Height: 35 mm
Width: 244 mm

Network
WiFi standards: WiFi 6 (802.11ax)
WiFi: Yes
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
Top WiFi standard: WiFi 6 (802.11ax)
Bluetooth version: 5.3
WLAN controller model: Realtek RTL8851BE
LAN controller: Realtek RTL8111H
Bluetooth: Yes

Internal I/O
Serial port headers: 1
CPU fan connector: Yes
TPM connector: Yes
12V power connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of SATA III connectors: 4
ATX Power connector (24pin): Yes
Parallel connector: Yes
Number of chassis fan connectors: 3
EPS power connector (8pin): Yes
Front panel connector: Yes
Front panel audio connector: Yes
RGB LED pin header: Yes
Number of CPU fan connectors: 1
Number of EPS power connectors (8pin): 1
USB 2.0 connectors: 2
S/PDIF out connector: Yes
Number of RGB LED pin headers: 2

BIOS
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
ACPI version: 5.0
BIOS type: UEFI AMI
BIOS memory size: 128 Mbit
Clear CMOS jumper: Yes

Packaging data
Package width: 265 mm
Package height: 54 mm
Package depth: 265 mm
Package weight: 1.2 kg
Bundled software: Norton Internet Security (OEM version) LAN bandwidth management software

Packaging content
Batteries included: Yes
Screws included: Yes
Antenna included: Yes

Storage controllers
RAID levels: 0, 5, 10, 1
RAID support: Yes
Number of storage drives supported: 6
Number of HDDs supported: 4
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III

Rear panel I/O ports
USB 2.0 ports quantity: 2
PS/2 ports quantity: 1
HDMI version: 2.1
DisplayPort version: 1.2
Linein: Yes
VGA (DSub) ports quantity: 1
Headphone outputs: 1
WiFiAP antenna jack: 2
Ethernet LAN (RJ45) ports: 1
Microphone in: Yes
USB 3.2 Gen 1 (3.1 Gen 1) TypeA ports quantity: 3
HDMI ports quantity: 1
DisplayPorts quantity: 1

Expansion slots
PCI Express x1 (Gen 3.x) slots: 2
Number of M.2 (M) slots: 2
PCI Express x16 (Gen 4.x) slots: 1
2nd M.2 largest key size: 2280
1st M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 4.0
2nd M.2 highest PCI Express generation: 4.0

Battery
Number of battery cells: 1
Battery type: CR2032
Battery weight: 3 g
Battery technology: LithiumManganese Dioxide (LiMnO2)
Lithium weight per battery: 0.07 g

Other features
Weight: 1.11 kg

Logistics data
Products per shipping (inner) case: 1 pc(s)

Memorija

Tip memorije

DDR5

Broj memorijskih utora

Tip memorijskih utora

DIMM

Memorijski kanali

Dvokanalni

Procesor

Socket

Intel 1700

Proizvođač procesora

Intel

Značajke

Chipset

Intel B760

Karakteristike
