Gigabyte GIGA X870I AORUS PRO ICE X870/DDR5/M-ITX cijene

Technical details
Warranty period: 3 year(s)

Processor
Processor socket: Socket AM5
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets: Socket AM5
Processor manufacturer: AMD

Graphics
DirectX version: 12.0
HDCP: Yes
Maximum resolution: 4096 x 2160 pixels
Parallel processing technology support: Not supported

Features
Power source type: ATX
PC health monitoring: Temperature, Fan, Water cooling, Voltage
Motherboard chipset: AMD X870
Audio output channels: 7.1 channels
Windows operating systems supported: Windows 11 x64
Component for: PC
Motherboard form factor: Micro ITX
Audio chip: Realtek ALC4080
Motherboard chipset family: AMD
Product colour: White

Memory
Supported memory types: DDR5SDRAM
Supported memory clock speed (max): 8400 MHz
Number of memory slots: 2
Memory slots type: DIMM
Maximum internal memory: 128 GB
Maximum internal memory per slot: 64 GB
Memory channels: Dualchannel
Unbuffered memory: Yes
ECC ompatibility: NonECC
Supported memory clock speeds: 5600, 7200 MHz, 8000 MHz, 6000, 6400, 4400, 7950, 7900, 6600, 5200, 8400, 8266, 7600, 7800, 4800, 5800, 7400, 6800, 6200, 7000, 8200

Weight & dimensions
Depth: 170 mm
Height: 35 mm
Width: 170 mm

Network
Ethernet LAN: Yes
WiFi: Yes
WLAN controller model: Realtek RTL8922AE
Bluetooth version: 5.4
Ethernet interface type: 2.5 Gigabit Ethernet
Top WiFi standard: WiFi 7 (802.11be)
WiFi standards: 802.11g, WiFi 4 (802.11n), WiFi 6E (802.11ax), WiFi 5 (802.11ac), WiFi 7 (802.11be), 802.11b, 802.11a, WiFi 6 (802.11ax)
LAN controller: Realtek RTL8125
Bluetooth: Yes

Internal I/O
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
RGB LED pin header: Yes
EPS power connector (8pin): Yes
USB 2.0 connectors: 1
Number of EPS power connectors (8pin): 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Chassis intrusion connector: Yes
Front panel audio connector: Yes
Number of CPU fan connectors: 2
Number of chassis fan connectors: 1
ATX Power connector (24pin): Yes
Number of SATA III connectors: 2
CPU fan connector: Yes
Front panel connector: Yes
Number of RGB LED pin headers: 3
Number of water pump connectors: 1

BIOS
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
BIOS memory size: 256 Mbit
Clear CMOS jumper: Yes
BIOS type: UEFI AMI
ACPI version: 5.0

Packaging data
Package weight: 1.28 kg
Package height: 95 mm
Package width: 235 mm
Package depth: 227 mm
Bundled software: Norton Internet Security (OEM version) LAN bandwidth management software

Packaging content

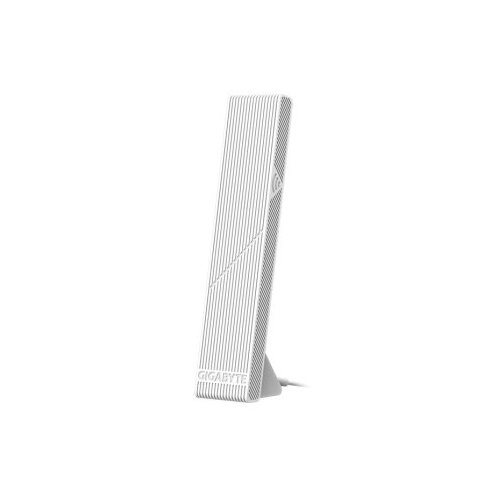

Antenna included: Yes
Batteries included: Yes
Screws included: Yes

Storage controllers
Number of HDDs supported: 2
Number of storage drives supported: 4
Supported storage drive types: HDD & SSD
RAID levels: 0, 1
RAID support: Yes
Supported storage drive interfaces: M.2, SATA III

Rear panel I/O ports
WiFiAP antenna jack: 2
Linein: Yes
Headphone outputs: 1
USB4 Gen 2x2 ports quantity: 1
HDMI version: 2.1
Ethernet LAN (RJ45) ports: 1
DisplayPort version: 1.4
USB 3.2 Gen 2 (3.1 Gen 2) TypeC ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) TypeA ports quantity: 2
USB 2.0 ports quantity: 2
HDMI ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) TypeA ports quantity: 2

Expansion slots
PCI Express x16 (Gen 5.x) slots: 1
Number of M.2 (M) slots: 2
1st M.2 largest key size: 2280
2nd M.2 highest PCI Express generation: 4.0
1st M.2 highest PCI Express generation: 5.0
2nd M.2 largest key size: 2280

Battery
Battery weight: 3 g
Battery technology: LithiumManganese Dioxide (LiMnO2)
Number of battery cells: 1
Battery type: CR2032
Lithium weight per battery: 0.07 g

Other features
Weight: 1.2 kg

Logistics data
Products per shipping (inner) case: 1 pc(s)
Country of origin: Taiwan
