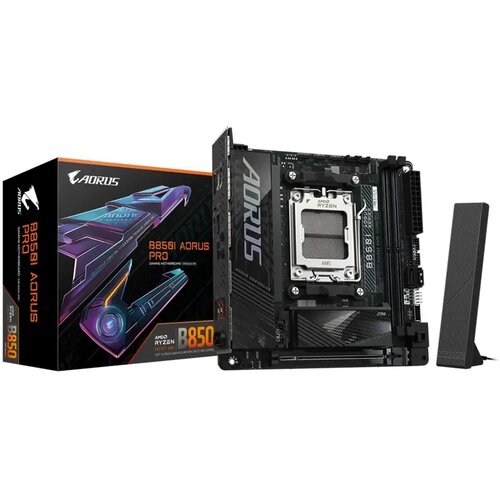

Gigabyte B850I AORUS PRO Motherboard - AMD Ryzen 9000 Series CPUs, 8+2+1 Phases Digital VRM, up to 8400MHz DDR5 (OC), 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5LAN, WIFI 7, USB 3.2 Gen 2 cijene

Technical details
Warranty period: 3 year(s)

Processor
Compatible processor series: AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series
Processor manufacturer: AMD
Supported processor sockets: Socket AM5
Processor socket: Socket AM5

Graphics
Onboard graphics card: No
DirectX version: 12.0
Maximum resolution: 4096 x 2160 pixels
Parallel processing technology support: Not supported
HDCP: Yes

Features
Windows operating systems supported: Windows 11 x64
Product colour: Black, Bronze
Motherboard chipset: AMD B850
Audio output channels: 7.1 channels
PC health monitoring: Water cooling, Temperature, Fan, Voltage
Motherboard form factor: mini ITX
Component for: PC
Motherboard chipset family: AMD

Memory
Memory slots type: DIMM
Supported memory types: DDR5SDRAM
Memory channels: Dualchannel
Number of memory slots: 2
Supported memory clock speed (max): 8400 MHz
Supported memory clock speeds: 6000, 6400, 6200, 6600, 6666, 7000, 8200, 6800, 4800, 7600, 7800, 5200, 8400, 5600, 7200 MHz, 4400, 8000 MHz
Unbuffered memory: Yes
Maximum internal memory per slot: 64 GB
Maximum internal memory: 128 GB
ECC ompatibility: NonECC

Weight & dimensions
Height: 35 mm
Width: 170 mm
Depth: 170 mm

Network
WiFi standards: WiFi 6E (802.11ax), 802.11b, WiFi 4 (802.11n), 802.11a, WiFi 6 (802.11ax), 802.11g, WiFi 5 (802.11ac), WiFi 7 (802.11be)
Ethernet interface type: Gigabit Ethernet
Top WiFi standard: WiFi 7 (802.11be)
WLAN controller model: Realtek RTL8922AE
WiFi: Yes
Ethernet LAN: Yes
Bluetooth version: 5.4
Bluetooth: Yes

Internal I/O
Total number of SATA connectors: 2
EPS power connector (8pin): Yes
12V power connector: Yes
RGB LED pin header: Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Front panel connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of water pump connectors: 1
ATX Power connector (24pin): Yes
Number of RGB LED pin headers: 4
USB 2.0 connectors: 1
Number of SATA III connectors: 2
Front panel audio connector: Yes
Number of CPU fan connectors: 2
CPU fan connector: Yes
Number of EPS power connectors (8pin): 1

BIOS
BIOS memory size: 256 Mbit
Clear CMOS button: Yes
System Management BIOS (SMBIOS) version: 2.7
Desktop Management Interface (DMI) version: 2.7
Clear CMOS jumper: Yes
ACPI version: 5.0
BIOS type: UEFI AMI
Bundled software: Norton Internet Security (OEM version) LAN bandwidth management software

Packaging content
Batteries included: Yes
Antenna included: Yes
Screws included: Yes

Storage controllers
Number of HDDs supported: 2
Number of storage drives supported: 4
Supported storage drive types: HDD & SSD
RAID support: Yes
Supported storage drive interfaces: M.2, SATA III
RAID levels: 10, 1, 0

Rear panel I/O ports
Microphone in: Yes
USB 3.2 Gen 1 (3.1 Gen 1) TypeA ports quantity: 2
Headphone outputs: 1
USB 3.2 Gen 2 (3.1 Gen 2) TypeC ports quantity: 1
HDMI ports quantity: 1
WiFiAP antenna jack: 2
HDMI version: 2.1
USB 3.2 Gen 2 (3.1 Gen 2) TypeA ports quantity: 2
USB 2.0 ports quantity: 2
DisplayPorts quantity: 1
Ethernet LAN (RJ45) ports: 1
DisplayPort version: 2.1

Expansion slots
PCI Express x16 (Gen 5.x) slots: 1
2nd M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 5.0
1st M.2 largest key size: 2280
2nd M.2 highest PCI Express generation: 4.0
Number of M.2 (M) slots: 2

Battery
Number of battery cells: 1
Battery weight: 3 g
Battery technology: LithiumManganese Dioxide (LiMnO2)
Battery type: CR2032
Lithium weight per battery: 0.07 g

Other features
Weight: 1.3 kg

Logistics data
Products per shipping (inner) case: 1 pc(s)
Country of origin: China
