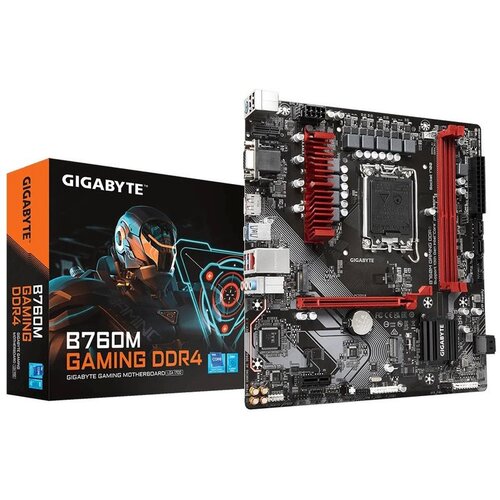

Gigabyte Matična ploča B760M Gaming, DDR4, s1700, mATX B760M GAMING DDR4 cijene

Processor
Processor manufacturer: Intel
Compatible processor series: Intel Core i5, Intel Celeron, Intel Core i3, Intel Core i7, Intel Core i9, Intel Pentium Gold
Processor socket: LGA 1700
Supported processor sockets: LGA 1700

Graphics
HDCP: Yes
Maximum resolution: 4096 x 2304 pixels
Number of displays supported: 3
Parallel processing technology support: Not supported

Features
Motherboard chipset: Intel B760 Express
Motherboard chipset family: Intel
PC health monitoring: Voltage, Water cooling, Fan, Temperature
Audio output channels: 7.1 channels
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Motherboard form factor: micro ATX

Memory
Supported memory clock speeds: 2400, 4700, 4500, 3400, 3866, 3733, 4300, 4400, 5000, 4600 MHz, 4133, 4000, 3666, 4800, 4933, 3466, 3000, 5333 MHz, 3200, 2666, 4266, 2933, 3600, 3300, 5133, 2133, 3800, 3333
Unbuffered memory: Yes
Maximum internal memory: 64 GB
Supported memory types: DDR4SDRAM
Memory slots type: DIMM
Memory channels: Dualchannel
Number of memory slots: 2

Weight & dimensions
Depth: 225 mm
Width: 244 mm

Network
Ethernet LAN: Yes
WiFi: No
Ethernet interface type: 2.5 Gigabit Ethernet

Internal I/O
S/PDIF out connector: Yes
ATX Power connector (24pin): Yes
Number of SATA III connectors: 4
Serial port headers: 1
Front panel audio connector: Yes
CPU fan connector: Yes
RGB LED pin header: Yes
Front panel connector: Yes
TPM connector: Yes
EPS power connector (8pin): Yes
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
12V power connector: Yes

BIOS
Clear CMOS jumper: Yes
Desktop Management Interface (DMI) version: 2.7
BIOS type: UEFI AMI
Bundled software: Norton Internet Security

Packaging content
Cables included: SATA

Storage controllers
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III
RAID levels: 10, 1, 5, 0
RAID support: Yes
Number of storage drives supported: 6

Rear panel I/O ports
HDMI ports quantity: 1
PS/2 ports quantity: 1
DisplayPorts quantity: 1
USB connector type: USB TypeC, USB TypeA
Ethernet LAN (RJ45) ports: 1
USB 3.2 Gen 1 (3.1 Gen 1) TypeC ports quantity: 1
USB 2.0 ports quantity: 2
DisplayPort version: 1.2
VGA (DSub) ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) TypeA ports quantity: 3
HDMI version: 2.0
Microphone in: Yes
Headphone outputs: 3

Expansion slots
PCI Express x16 slots: 1
PCI Express x1 slots: 1
Number of M.2 (M) slots: 2
