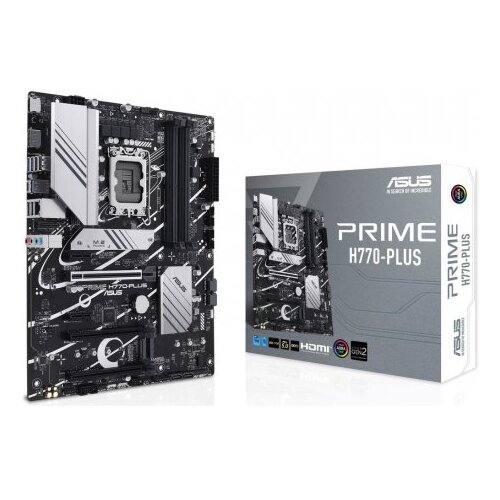

Asus Matična ploča PRIME H770-PLUS LGA1700 H770 DDR5 cijene

ASUS Prime Series motherboards are expertly designed to harness the full potential of 13th Gen Intel Core processors. With a robust power supply, comprehensive cooling solutions and intelligent tuning options, the PRIME H770PLUS offers users and PC DIY builders a range of performance optimizations via intuitive software and firmware features.
FLEXIBILITY
Extensive control options form the basis of the ASUS Prime series. The PRIME H770PLUS motherboard offers flexible tools that allow you to optimize every aspect of your system. This means you can tailor the performance perfectly to your way of working and maximize productivity.
Intelligent control
ASUS Intelligent Control makes your PC intelligent. Not only does it take care of complex tuning and dynamic optimization of key aspects of your system, but it also offers intelligently simplified options for PC newbies and more comprehensive features for seasoned veterans.
Allround energy efficiency
The power saving feature includes various settings that allow you to optimize power consumption and maximize energy savings. You can enable CPU power limiting, dim Aura lighting, and set the fan profile to a power saving mode. You can also toggle the power plan that is built into Microsoft Windows.
Flexible controls for air and water cooling
ASUS Fan Xpert 2+ software provides comprehensive control over fans and allinone (AiO) coolers. Whether you cool with air or water, AutoTuning mode intelligently configures all parameters with a single click. Theres also an ultraquiet mode that reduces fan speeds below the standard minimum to keep your system whisperquiet during light tasks. Fans and AIO coolers can also be controlled via UEFI BIOS.
Precise digital power control
The Digi+ Voltage Regulator Module (VRM) provides realtime control over voltage drop and automatically controls frequency and power efficiency settings. It also lets you optimize your CPU for ultimate stability and performance.
UEFI BIOS
The renowned ASUS UEFI BIOS offers everything you need to configure, optimize and tune your system. It offers both intelligently simplified options for PC beginners and comprehensive features for seasoned veterans.
Advanced tuning for passionate tweakers
An intuitive Advanced Mode offered via UEFI lets you take full control. A builtin search function makes it easy to find options, and various advanced features allow you to make intelligent adjustments so you can tune performance exactly how you want.
Search function
Find the option or setting you need quickly and easily.
ASUS user profile
Transfer configuration settings between different BIOS versions or exchange them with friends.
Quick and easy setup
EZ Mode displays key settings and statistics, and also offers wizards, draganddrop functionality, and the ability to adjust key settings with one click so you can set up your system in a snap.
Intuitive graphical fan controls
Finetuning individual fan settings is done simply by dragging a curve with the mouse.
Aura on/off mode (stealth)
Enable or disable Aura RGB lighting or any individual LED onboard to improve aesthetics.
COOLING
The PRIME H770PLUS motherboard is equipped with multiple onboard heatsinks and a range of hybrid fan headers to ensure your system stays cool and stable even under intense load.
Heat sink
M.2 heatsink
The M.2 heatsink prevents the throttling that can occur with M.2 storage during sustained transfers. The heat sink is held in place by captive screws. These removable captive screws reduce the risk of the heatsink falling or being lost during removal.
VRM heatsink and thermal pad
The massive VRM heatsink and thermal pad improve heat dissipation from the MOSFETs for better cooling performance.
Cooler by design
The PRIME H770PLUS features comprehensive cooling controls that can be configured via Fan Xpert 2+ software or via the UEFI BIOS.
Multiple temperature sources
One of three temperature sensors can be dynamically assigned to each connection. With Fan Xpert 2+ you can map the temperature of supported ASUS graphics cards to optimize cooling for GPU and CPU intensive tasks.
AIO pump connection
A special PWM/DC connection for custom water cooling.
Intelligent protection
A special integrated circuit protects each fan connection from overheating and overcurrent.
4pin PWM/DC fan
Each onboard header supports automatic detection of PWM or DC fans.
PERFORMANCE
The PRIME H770PLUS motherboard is designed for the high core counts and bandwidth requirements of the 13th generation Intel Core processors. The ASUS H770 motherboard offers all the basics to increase daily productivity. Your system is ready to go with stable performance, intuitive cooling and flexible data transfer options.
Robust power design
A stable power supply is important in order to use the last bit of performance from the Intel processors. The PRIME H770PLUS is designed to meet the requirements of these highcore CPUs.
ProCool connection
The proprietary connector expands the mainboards connection to the power supply with an 8pin connector that forwards the 12 volts directly to the processors. Each socket is equipped with solid contacts that can handle higher currents than sockets with hollow contacts.
Sixlayer board design
Multiple PCB layers optimize thermal management for critical components to keep them at their optimal operating temperature.
Storage
AEMP II for ultimate DDR5 performance
ASUS Enhanced Memory Profile II (AEMP II) is an exclusive firmware feature for memory modules with PMIC limitation. AEMP II relies on the ability of a CPU and memory module to train your kits memory chips, providing an optimized clock speed that can unleash performance with ease.
Through a flexible training method, AEMP II makes it easy to not only optimize memory beyond basic settings, but also maintain system stability, whether youre getting the most out of an entrylevel module or preparing a highspeed kit for ultimate performance .
*Results may vary depending on the capabilities of your CPU and memory modules.
**The comparison table is based on a test with an Intel i913900K processor and 2x16 GB SK Hynix DDR54800 nonECC UDIMMs, model HMCG78MEBUA081N.
***Please ensure that all memory modules come from a single validated kit. Do not mix DIMMs from multiple kits, even if they are the same brand and model. Mixing and matching DIMMs may result in boot failure and compatibility cannot be guaranteed.
****Always install DIMMs with the same CAS latency. For optimal compatibility, we recommend that you install memory modules of the same version or date code (D/C) from the same manufacturer. Check with your dealer to get the correct memory modules
ASUS OptiMem II
The motherboards revised conductor routing offers the latest Intel processors unrestricted access to memory bandwidth. ASUS OptiMem II technology carefully maps the memorys signal paths across the various PCB layers to reduce vias and adds shielding zones that significantly reduce crosstalk.
Advantages of ASUS OptiMem II:
Improved memory stability and compatibility
Enables lower memory latencies at the same voltage
Higher memory frequency reserves
*Motherboards with OptiMem II technology were tested using Synopsys HSPICE simulation software
drive
Three M.2 slots (up to 64 Gbps)
The PRIME H770PLUS offers a total of three M.2 slots that support data transfer speeds of up to 64 Gbit/s via PCIe 4.0, enabling faster boot and loading times for operating systems or applications.
*Actual transfer speed is lower than theoretical maximum speed.
Connectivity
PCIe 5.0 slot
PCIe 5.0 offers data transfer speeds that are twice as high as PCIe 4.0 and is therefore particularly suitable for handling new dataintensive tasks. PCIe 5.0 brings other advantages, such as: Such as electrical changes to improve signal integrity, backwards compatible CEM connectors for addin cards, and compatibility with earlier versions of PCI Express.
USB 3.2 Gen 2 TypeC
A range of USB ports support highend rigs loaded with peripherals, including a rear USB TypeC port with ultrafast USB 3.2 Gen 2 for transfer speeds of up to 10 Gbps.
Thunderbolt 4 (USB4 compliant)
The PRIME H770PLUS motherboard has USB4 support via a Thunderbolt (USB4) header. With an ASUS addon card*, PRIME motherboards can enable bidirectional speeds of up to 40 Gbps over a single cable while also providing power for fast charging of devices. This card also features a daisy chain feature for connecting multiple displays and supports up to two displays with 4K resolution.
*ASUS addon card is sold separately.
Realtek 2.5Gb Ethernet
Realtek 2.5Gb Ethernet reduces CPU overhead and delivers exceptionally high TCP and UDP throughput for faster, smoother data transfers.
LANGuard
ASUS LANGuard is a hardwarelevel network protection feature that integrates advanced signal coupling technology and highquality surfacemount antiEMI capacitors to improve throughput and ensure a more reliable connection.
Combined onboard features deliver premium sound
Intelligent design and highquality hardware ensure audio quality like youve never experienced before.
Audio shielding
Audio shielding ensures precise analog/digital separation and greatly reduced multilateral interference.
Dedicated audio PCB layers
Separate layers for the left and right tracks ensure that both channels deliver the same quality.
Premium audio capacitors
Provides warm, natural and realistic sound with exceptional clarity and fidelity.
Aura Sync
Outshine the com
