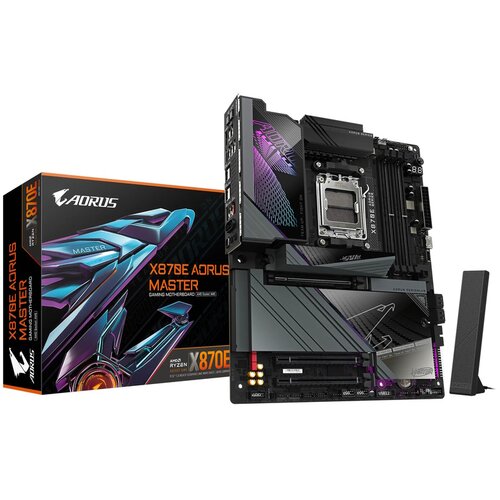

Gigabyte X870E AORUS MASTER (X870,AM5,ATX,DDR5) cijene

Technical details
Warranty period: 3 year(s)

Processor
Processor manufacturer: AMD
Compatible processor series: AMD Ryzen 9000 Series, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series
Supported processor sockets: Socket AM5
Processor socket: Socket AM5
Maximum internal memory supported by processor: 256 GB

Graphics
Onboard graphics card: No
Parallel processing technology support: Not supported
DirectX version: 12.0

Features
Motherboard chipset: AMD X870
Audio output channels: 7.1 channels
Audio chip: Realtek ALC1220
Windows operating systems supported: Windows 11 x64
Motherboard chipset family: AMD
Product colour: Black
PC health monitoring: Voltage, Fan, Temperature
Motherboard form factor: ATX

Memory
Memory channels: Dualchannel
Supported memory module capacities: 32GB, 24GB, 12GB, 1GB, 8GB, 2GB, 4GB
Supported memory clock speeds: 6200, 6666, 7600, 7800 MHz, 6800, 8600 MHz, 6400, 6600, 4800 MHz, 5200, 8400, 6000, 5600, 7200, 7000, 8200, 4400
Memory slots type: DIMM
Maximum internal memory: 256 GB
Number of memory slots: 4
Supported memory types: DDR5SDRAM
Unbuffered memory: Yes
Maximum internal memory per slot: 64 GB
ECC ompatibility: ECC & NonECC
Supported memory clock speed (max): 8600 MHz

Weight & dimensions
Width: 305 mm
Height: 35 mm
Depth: 244 mm

Network
Bluetooth: Yes
LAN controller: Realtek RTL8126
Top WiFi standard: WiFi 7 (802.11be)
WiFi: Yes
Ethernet interface type: 5 Gigabit Ethernet
WLAN controller model: Qualcomm QCNCM865
Ethernet LAN: Yes
Bluetooth version: 5.3
WiFi standards: WiFi 7 (802.11be)

Internal I/O
RGB LED pin header: Yes
Number of water pump connectors: 2
Number of SATA III connectors: 4
EPS power connector (8pin): Yes
Number of chassis fan connectors: 6
TPM connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of RGB LED pin headers: 5
ATX Power connector (24pin): Yes
CPU fan connector: Yes
USB 3.2 Gen 2x2 connectors: 1
Front panel audio connector: Yes
Front panel connector: Yes
USB 2.0 connectors: 2
Number of CPU fan connectors: 2
Number of EPS power connectors (8pin): 2

BIOS
Desktop Management Interface (DMI) version: 2.7
BIOS type: UEFI AMI
Clear CMOS jumper: Yes
Clear CMOS button: Yes

Packaging data
Package height: 80 mm
Package depth: 294 mm
Package weight: 2.97 kg
Package width: 345 mm

Packaging content
Antenna included: Yes
Batteries included: Yes
Screws included: Yes

Storage controllers
Number of HDDs supported: 4
Supported storage drive types: HDD & SSD
RAID levels: 10, 0, 1
Number of storage drives supported: 8
Supported storage drive interfaces: M.2, SATA III
RAID support: Yes

Rear panel I/O ports
Linein: Yes
USB 3.2 Gen 2 (3.1 Gen 2) TypeA ports quantity: 4
Headphone outputs: 1
HDMI version: 2.1
DisplayPort version: 1.4
S/PDIF out port: Yes
Ethernet LAN (RJ45) ports: 1
HDMI ports quantity: 1
USB 2.0 ports quantity: 2
WiFiAP antenna jack: 2
USB 3.2 Gen 1 (3.1 Gen 1) TypeA ports quantity: 4
USB4 Gen 2x2 ports quantity: 2

Expansion slots
3rd M.2 largest key size: 22110
3rd M.2 highest PCI Express generation: 5.0
4th M.2 largest key size: 22110
1st M.2 highest PCI Express generation: 5.0
4th M.2 highest PCI Express generation: 4.0
2nd M.2 largest key size: 22110
2nd M.2 highest PCI Express generation: 5.0
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x4 slots: 2
PCI Express x16 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 4
1st M.2 largest key size: 25110
PCI Express x16 (Gen 5.x) slots: 1

Battery
Number of battery cells: 1
Battery type: CR2032
Lithium weight per battery: 0.07 g
Battery weight: 3 g
Battery technology: LithiumManganese Dioxide (LiMnO2)

Other features
Weight: 2.54 kg

Logistics data
Products per shipping (inner) case: 1 pc(s)
Country of origin: China

Safety warning
Warnings: Do not disassemble to avoid damage to internal components and loss of warranty., Dispose of in accordance with local regulations for electronic waste., Avoid contact with liquids to prevent electronic damage.
