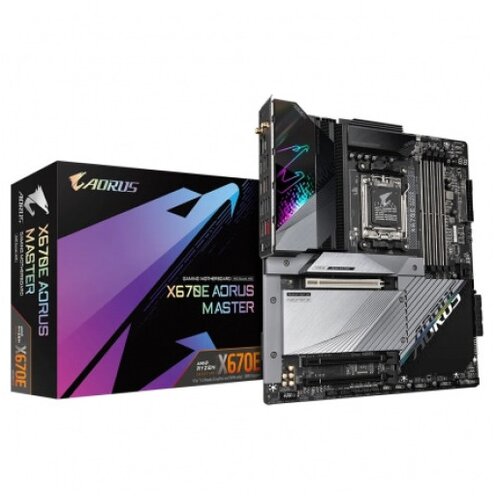

Gigabyte MOTHERBOARD X670E AORUS MASTER Slike

Gigabyte MOTHERBOARD X670E AORUS MASTER cijene

Name: Gigabyte MOTHERBOARD X670E AORUS MASTER
Brand: Gigabyte
SKU: 11025896
Availability: InStock

501,60 €

Više o ponudi

Gigabyte MOTHERBOARD X670E AORUS MASTER

Trenutno najbolja ponuda:

501.6 EUR u Tia mobiteli

Više o ponudi Prikaži trgovine (1)

Usporedi cijene (1)
Opis i karakteristike
Promjena cijene
Recenzije

Gigabyte MOTHERBOARD X670E AORUS MASTER

Besplatno Na zalihama

501,60 €

Više o ponudi

Besplatno Na zalihama

Više o ponudi

Gdje se moj proizvod uklapa? Prikazani su najpopularniji proizvodi u svakom cjenovnom rangu. Grafikon prikazuje kretanje potražnje. Možeš promijeniti prikaz odabirom proizvoda ili klikom na gumb.

Opis i karakteristike

Technical details
Warranty period: 3 year(s)

Processor
Processor manufacturer: AMD
Supported processor sockets: Socket AM5
Maximum number of SMP processors: 1
Maximum internal memory supported by processor: 192 GB
Compatible processor series: AMD Ryzen 7
Processor socket: Socket AM5

Graphics
HDCP: Yes
Parallel processing technology support: Not supported
DirectX version: 12.0

Features
Windows operating systems supported: Windows 10 Home x64, Windows 11 x64
Motherboard chipset: AMD X670
Audio output channels: 7.1 channels
Motherboard form factor: ATX
Motherboard chipset family: AMD
Product colour: Black

Memory
Supported memory clock speeds: 6800, 4800 MHz, 6400, 6600, 6200, 6666, 4400, 7000, 5200, 6000, 8000 MHz, 7600, 7800 MHz, 5600, 7200
Memory channels: Dualchannel
Maximum internal memory: 192 GB
Memory slots type: DIMM
Supported memory types: DDR5SDRAM
Number of memory slots: 4
Supported memory clock speed (max): 8000 MHz
ECC ompatibility: NonECC

Weight & dimensions
Height: 35 mm
Depth: 269 mm
Width: 305 mm

Network
WiFi standards: 802.11a, WiFi 6 (802.11ax), 802.11g, WiFi 4 (802.11n), WiFi 5 (802.11ac), WiFi 6E (802.11ax), 802.11b
Bluetooth: Yes
Top WiFi standard: WiFi 6E (802.11ax)
Ethernet LAN: Yes
WLAN controller model: Intel WiFi 6E AX210
WiFi: Yes
Bluetooth version: 5.3
Ethernet interface type: 2.5 Gigabit Ethernet

Internal I/O
Chassis intrusion connector: Yes
CPU fan connector: Yes
Front panel connector: Yes
Number of SATA III connectors: 6
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Total number of SATA connectors: 6
USB 2.0 connectors: 2
RGB LED pin header: Yes
USB 3.2 Gen 2x2 connectors: 1
Audio connector: Yes

BIOS
Clear CMOS jumper: Yes
BIOS type: UEFI AMI
Desktop Management Interface (DMI) version: 2.7

Packaging data
Package weight: 3.33 kg
Package width: 400 mm
Package height: 430 mm
Package depth: 335 mm

Packaging content
Cables included: SATA
Drivers included: Yes
Batteries included: Yes

Storage controllers
Supported storage drive interfaces: M.2, SATA II
Supported storage drive types: HDD & SSD
RAID levels: 0, 1, 10
Number of HDDs supported: 4
Number of storage drives supported: 10

Rear panel I/O ports
HDMI version: 2.0
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) TypeA ports quantity: 4
Ethernet LAN (RJ45) ports: 1
USB 2.0 ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) TypeA ports quantity: 4
S/PDIF out port: Yes
USB 3.2 Gen 2 (3.1 Gen 2) TypeC ports quantity: 1
USB 3.2 Gen 2x2 TypeC ports quantity: 1

Expansion slots
Number of M.2 (M) slots: 4
PCI Express x1 (Gen 4.x) slots: 1
PCI Express x4 (Gen 2.x) slots: 1

Battery
Battery type: CR2032
Battery technology: LithiumManganese Dioxide (LiMnO2)
Battery weight: 3 g
Number of battery cells: 1
Lithium weight per battery: 0.07 g

Logistics data
Country of origin: Taiwan
Products per shipping (inner) case: 1 pc(s)

Interni I/O

USB 2.0 priključci

Broj SATA II priključaka

Audio priključak na prednjoj strani

ATX priključak napajanja (24-pin)

Priključak ventilatora za procesor

Broj priključaka za ventilatore na kućištu

TPM priključak

USB 3.2 Gen 1 (3.1 Gen 1) konektori

Poveznik prednje ploče

Poveznik 12V napajanja

RGB LED pin header

Memorija

Tip memorije

DDR5, DDR4

Broj memorijskih utora

Tip memorijskih utora

DIMM

Memorijski kanali

Dvokanalni

Maksimalna količina interne memorije (GB)

128

Memorija bez međuspremnika

Grafika

Maksimalna razlučivost (pikseli)

4096 x 2160

Podrška za tehnologiju paralelne obrade

2-Way CrossFireX, 2-Way SLI, 3-Way CrossFireX

Mreža

Wi-Fi

Procesor

Socket

AMD AM4

Proizvođač procesora

AMD

Kompatibilni procesori

2nd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen™ 3, 2nd Generation AMD Ryzen™ 5, 3rd Generation AMD Ryzen 5, 2nd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9

Maksimalan broj SMP procesora

Kontroler uređaja za pohranu podataka

Podržana sučelja pogona za pohranu

SATA III

RAID tipovi

0, 1, 10

Značajke

Chipset

AMD X670E, AMD X670

Format ploče

E-ATX

Karakteristike

Brend

Gigabyte
