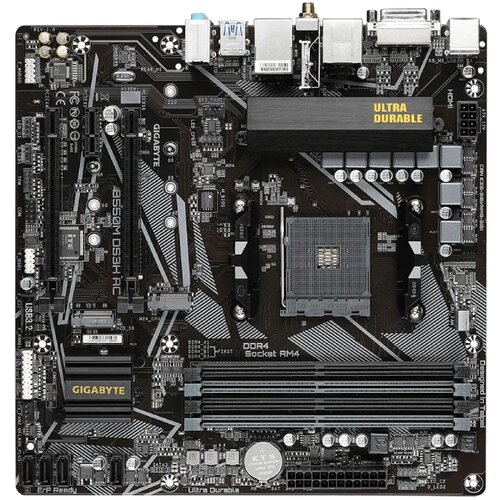

Gigabyte B550M DS3H Socket AM4 micro ATX AMD B550 cijene

Technical details
Warranty period: 3 year(s)

Processor
Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 5000 Series, AMD Ryzen 4000 Series
Supported processor sockets: Socket AM4
Processor manufacturer: AMD
Processor socket: Socket AM4

Graphics
HDCP: Yes
Maximum resolution: 4096 x 2160 pixels
Parallel processing technology support: Not supported
DirectX version: 12.0

Features
Motherboard chipset: AMD B550
PC health monitoring: Fan, Voltage, Temperature
Audio chip: Realtek ALC897
Cooling type: Passive
Motherboard chipset family: AMD
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Audio output channels: 7.1 channels
Product colour: Bronze
Motherboard form factor: micro ATX
Power source type: ATX

Memory
Memory channels: Dualchannel
Supported memory clock speeds: 2400, 2933, 3600, 4733, 3466, 2667, 3733, 4400, 3200, 4266, 4133, 4000, 4600, 3400, 3866, 2133 MHz
Number of memory slots: 4
Memory slots type: DIMM
Maximum internal memory: 128 GB
Supported memory types: DDR4SDRAM
ECC ompatibility: ECC & NonECC
Unbuffered memory: Yes
Supported memory clock speed (max): 4733 MHz
Maximum internal memory per slot: 32 GB

Weight & dimensions
Depth: 244 mm
Height: 35 mm
Width: 244 mm

Network
WiFi standards: 802.11g, WiFi 4 (802.11n), 802.11a, WiFi 5 (802.11ac), 802.11b
Bluetooth version: 4.2
Bluetooth: Yes
WiFi: Yes
Top WiFi standard: WiFi 5 (802.11ac)
LAN controller: Realtek RTL8111H
Ethernet interface type: Gigabit Ethernet
Ethernet LAN: Yes
WLAN controller model: Realtek RTL8821CE

Internal I/O
EPS power connector (8pin): Yes
Front panel audio connector: Yes
TPM connector: Yes
Serial port headers: 1
Number of SATA III connectors: 4
RGB LED pin header: Yes
CPU fan connector: Yes
12V power connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of chassis fan connectors: 2
ATX Power connector (24pin): Yes
Number of CPU fan connectors: 1
USB 2.0 connectors: 1
Audio connector: Yes
Number of water pump connectors: 2
Number of RGB LED pin headers: 5
Number of EPS power connectors (8pin): 1

BIOS
BIOS type: UEFI AMI
Desktop Management Interface (DMI) version: 2.7
Clear CMOS jumper: Yes

Packaging data
Package weight: 1.09 kg
Package width: 270 mm
Package height: 68 mm
Package depth: 268 mm
Bundled software: Norton Internet Security LAN bandwidth management software

Packaging content
Batteries included: Yes
Antenna included: Yes
Screws included: Yes

Storage controllers
RAID levels: 1, 10, 0
Supported storage drive types: HDD & SSD
Number of storage drives supported: 6
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 4
RAID support: Yes

Rear panel I/O ports
USB 2.0 ports quantity: 4
PS/2 ports quantity: 1
Ethernet LAN (RJ45) ports: 1
Headphone outputs: 1
USB 3.2 Gen 1 (3.1 Gen 1) TypeA ports quantity: 4
HDMI ports quantity: 1
Linein: Yes
Microphone in: Yes
DVID ports quantity: 1
HDMI version: 2.1
WiFiAP antenna jack: 2

Expansion slots
Number of M.2 (M) slots: 2
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x1 (Gen 3.x) slots: 1
PCI Express x16 (Gen 3.x) slots: 1
2nd M.2 largest key size: 2280
2nd M.2 highest PCI Express generation: 3.0
1st M.2 highest PCI Express generation: 4.0
1st M.2 largest key size: 22110

Battery
Battery technology: LithiumManganese Dioxide (LiMnO2)
Battery weight: 3 g
Battery type: CR2032
Number of battery cells: 1
Lithium weight per battery: 0.07 g

Logistics data
Products per shipping (inner) case: 1 pc(s)
Country of origin: China

Safety warning
Warnings: Dispose of according to local electrowaste regulations., Store away from water and sources of moisture., Avoid direct contact with sensitive electronic components.
