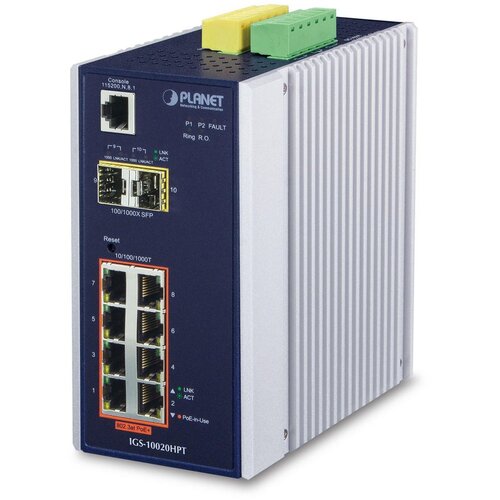

Planet IGS-10020HPT network switch Managed L2+ Gigabit Ethernet (10 /100 /1000) Power over Ethernet (PoE) Black, White cijene

Design
LED indicators: Yes
Wall mountable: Yes
Rack mounting: No
Product colour: Black, White
DIN rail mounting: Yes
Reset button: Yes
Housing material: Aluminium
International Protection (IP) code: IP30

Power
Power consumption (typical): 31.9 W
Input voltage: 48 V
Redundant power supply (RPS) support: Yes

Security
Access Control List (ACL): Yes
Security algorithms: SSH, SNMP, SSL/TLS
Loop protection: Yes
IGMP snooping: Yes
BPDU filtering/protection: Yes
Authentication: MACbased authentication, Portbased authentication

Operational conditions
Storage temperature (TT): 40 85 C
Operating relative humidity (HH): 5 95%
Operating temperature (TT): 40 75 C

Management features
Quality of Service (QoS) support: Yes
ARP inspection: Yes
Traffic classification: Yes
Switch type: Managed
System event log: Yes
Switch layer: L2+
Webbased management: Yes

Weight & dimensions
Depth: 107 mm
Height: 72 mm
Width: 152 mm
Weight: 1.68 kg

Network
Virtual LAN features: Private VLAN, Stacked VLAN, Protocolbased VLAN, Tagged VLAN
Link aggregation: Yes
Flow control support: Yes
Full duplex: Yes
Broadcast storm control: Yes
MAC address autoaging supported: Yes
MAC address autolearning supported: Yes
Spanning tree protocol: Yes
Autonegotiation: Yes
VLAN support: Yes
Port mirroring: Yes
Number of VLANs: 4094
10G support: No
Auto MDI/MDIX: Yes
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.1s, IEEE 802.1x, IEEE 802.1ab, IEEE 802.3u, IEEE 802.1w, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.1D, IEEE 802.3z

Performance
Firmware upgradeable: Yes

Protocols
Supported network protocols: IPv4 / IPv6
Management protocols: Telnet, SNMP v1/v2c

Ports & interfaces
Console port: RJ45
SFP module slots quantity: 2
Basic switching RJ45 Ethernet ports quantity: 8
Fiber optic connector: MiniGBIC
Basic switching RJ45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Logistics data
Harmonized System (HS) code: 85176990

Data transmission
Throughput: 14.8 Mpps
Number of queues: 8
Storeandforward: Yes
Jumbo frames support: Yes
Number of IP interfaces: 8
Switching capacity: 26 Gbit/s
Jumbo frames: 9000
MAC address table: 8000 entries

Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget: 270 W
Power over Ethernet plus (PoE+) ports quantity: 8
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) power per port: 36 W

Multicast features
Multicast support: Yes

Optical fiber
Fiber ethernet cabling technology: 1000BASEBX, 1000BASESX, 100BASEFX, 1000BASELX
