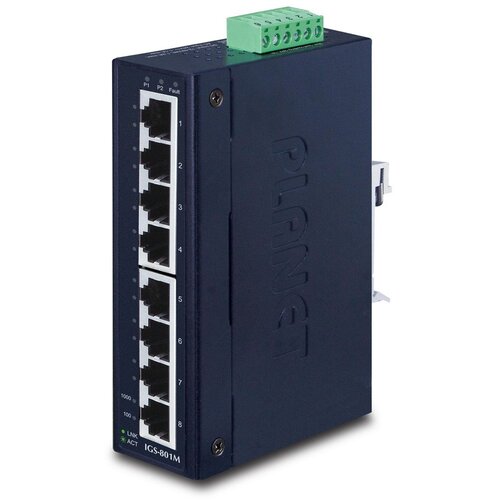

Planet IGS-801M network switch Managed L2 /L4 Gigabit Ethernet (10 /100 /1000) 1U Blue cijene

Design
Product colour: Blue
International Protection (IP) code: IP30
Reset button: Yes
Housing material: Metal
Wall mountable: Yes
Form factor: 1U
DIN rail mounting: Yes
Rack mounting: Yes
LED indicators: Yes

Power
Power consumption (typical): 4.5 W
Power consumption (max): 10 W

Security
MAC address filtering: Yes
Access Control List (ACL): Yes
Authentication: Portbased authentication
IGMP snooping: Yes
BPDU filtering/protection: Yes
SSH/SSL support: Yes
Loop protection: Yes
Security algorithms: SSH, SSL/TLS

Operational conditions
Operating temperature (TT): 40 75 C
Operating relative humidity (HH): 5 95%
Storage temperature (TT): 40 75 C
Heat dissipation: 15 BTU/h
Storage relative humidity (HH): 5 95%

Management features
Webbased management: Yes
Traffic classification: Yes
Switch type: Managed
Switch layer: L2/L4
ARP inspection: Yes
System event log: Yes
Quality of Service (QoS) support: Yes

Weight & dimensions
Weight: 472 g
Width: 32 mm
Depth: 87 mm
Height: 135 mm

Network
Networking standards: IEEE 802.3u, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1x, IEEE 802.1ab, IEEE 802.3ad, IEEE 802.1s, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3az
Half duplex: Yes
Port mirroring: Yes
Auto MDI/MDIX: Yes
Copper ethernet cabling technology: 10BASET, 1000BASET, 100BASETX
Link aggregation: Yes
Rate limiting: Yes
10G support: No
Spanning tree protocol: Yes
Full duplex: Yes
VLAN support: Yes
Broadcast storm control: Yes
Virtual LAN features: Tagged VLAN, Protocolbased VLAN, Stacked VLAN, Private VLAN
Flow control support: Yes
Number of VLANs: 4094

Performance
Firmware upgradeable: Yes

Protocols
Management protocols: Telnet/SNMP
Supported network protocols: IPv4 / IPv6

Ports & interfaces
Gigabit Ethernet (copper) ports quantity: 8
Basic switching RJ45 Ethernet ports quantity: 8
Basic switching RJ45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Other features
Terminal block port: Yes

Logistics data
Harmonized System (HS) code: 85176990

Data transmission
MAC address table: 8000 entries
Jumbo frames: 10000
Throughput: 11.9 Mpps
Switching capacity: 16 Gbit/s
Jumbo frames support: Yes
Number of queues: 8
Storeandforward: Yes

Power over Ethernet (PoE)
Power over Ethernet (PoE): No

Multicast features
Multicast support: Yes
Number of multicast groups filtered: 256
