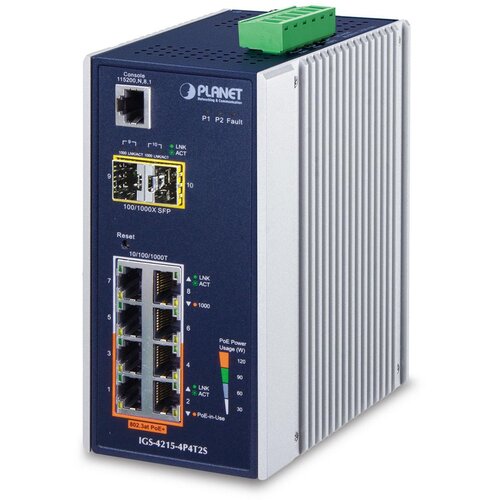

Planet IGS-4215-4P4T2S network switch Managed L2 /L4 Gigabit Ethernet (10 /100 /1000) Power over Ethernet (PoE) Blue, White cijene

Design
LED indicators: System, Power, PoE, Activity, Link
Wall mountable: Yes
DIN rail mounting: Yes
Safety: IEC 60068232, IEC 60068227, IEC 6006826
Rack mounting: No
Product colour: White, Blue
Housing material: Aluminium
Reset button: Yes
International Protection (IP) code: IP30
Stackable: No

Power
Power consumption (max): 152.96 W
DC input voltage: 48 56 V
Power consumption (typical): 5.04 W
Input current: 3.5 A

Security
Authentication: Portbased authentication
Security algorithms: SSH, 802.1x RADIUS, SNMP, 128bit SSL
MAC address filtering: Yes
BPDU filtering/protection: Yes
Static port security: Yes
SSH/SSL support: Yes
IGMP snooping: Yes
IPMACPort binding: Yes
Access Control List (ACL): Yes
DHCP features: DHCP client

Operational conditions
Operating relative humidity (HH): 5 95%
Operating temperature (TT): 40 75 C
Storage relative humidity (HH): 5 95%
Heat dissipation: 523.8 BTU/h
Storage temperature (TT): 40 85 C

Management features
Webbased management: Yes
Traffic classification: Yes
Switch layer: L2/L4
Switch type: Managed
System event log: Yes
MIB support: RFC 1215, RFC 1493, RFC 2674, RFC 2737, RFC 2819, RFC 2863, RFC 3635
ARP inspection: Yes
Quality of Service (QoS) support: Yes

Weight & dimensions
Width: 76.8 mm
Height: 152 mm
Weight: 1 kg
Depth: 107.3 mm

Network
Copper ethernet cabling technology: 100BASETX, 1000BASELX, 10BASET, 100BASEFX, 1000BASESX
Spanning tree protocol: Yes
Rate limiting: Yes
Networking standards: IEEE 802.1Q, IEEE 802.3x, IEEE 802.3u, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad, IEEE 802.1s, IEEE 802.1D, IEEE 802.3z, IEEE 802.1x, IEEE 802.1w, IEEE 802.1ab
Auto MDI/MDIX: Yes
VLAN support: Yes
10G support: No
Link aggregation: Yes
Number of VLANs: 256
Port mirroring: Yes
Virtual LAN features: Protocolbased VLAN, Private VLAN, Stacked VLAN
Broadcast storm control: Yes
Flow control support: Yes

Performance
Firmware upgradeable: Yes

Ports & interfaces
Basic switching RJ45 Ethernet ports quantity: 8
SFP module slots quantity: 2
Basic switching RJ45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Other features
Terminal block port: Yes

Logistics data
Harmonized System (HS) code: 85176990

Data transmission
Throughput: 14.8 Mpps
Jumbo frames: 10000
Storeandforward: Yes
MAC address table: 8000 entries
Switching capacity: 20 Gbit/s
Packet buffer memory: 4.1 MB
Jumbo frames support: Yes
Number of trunks: 4

Power over Ethernet (PoE)
Power over Ethernet (PoE) voltage range: 48 56 V
Total Power over Ethernet (PoE) budget: 144 W
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) ports quantity: 4

Multicast features
Multicast support: Yes
Number of multicast groups filtered: 256

Optical fiber
Fiber ethernet cabling technology: 1000BASEBX, 1000BASESX, 100BASEFX, 1000BASELX
