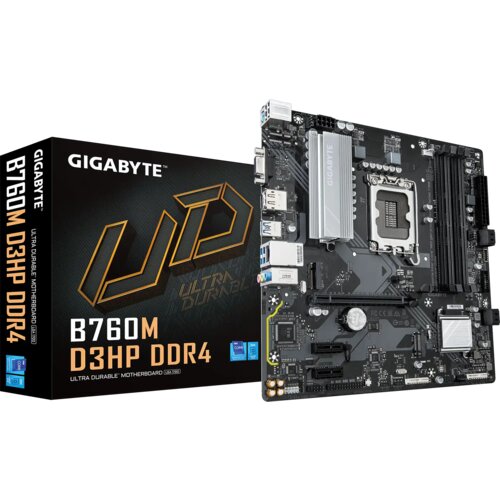

Gigabyte B760M D3HP DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, 4+1+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen1 cijene

Technical details
Warranty period: 3 year(s)

Processor
Compatible processor series: Intel Core i7, Intel Core i9, Intel Pentium Gold, Intel Core i3, Intel Core i5, Intel Celeron
Processor manufacturer: Intel
Processor socket: LGA 1700
Maximum internal memory supported by processor: 128 GB
Supported processor sockets: LGA 1700

Graphics
DirectX version: 12.0
HDCP: Yes
Maximum resolution: 4096 x 2304 pixels
Parallel processing technology support: Not supported

Features
Windows operating systems supported: Windows 10, Windows 11
Motherboard chipset: Intel B760 Express
Power source type: ATX
PC health monitoring: Water cooling, Fan, Temperature, Voltage
Audio output channels: 7.1 channels
Motherboard form factor: micro ATX
Motherboard chipset family: Intel
Product colour: Bronze

Memory
Supported memory types: DDR4SDRAM
Memory slots type: DIMM
Number of memory slots: 4
Memory channels: Dualchannel
Supported memory clock speeds: 5333 MHz, 5000, 5133, 3200, 3400, 3866, 3466, 2133, 2666, 4266, 2400, 4700, 3800, 3333, 4600, 3000, 3733, 4300, 4400, 2933, 4500, 4133, 4000, 3666, 4800, 4933, 3600, 3300
Maximum internal memory: 128 GB
Unbuffered memory: Yes
Supported memory module capacities: 12GB, 32GB, 1GB, 16GB, 8GB, 2GB, 4GB
Supported memory clock speed (max): 5333 MHz
ECC ompatibility: ECC & NonECC

Weight & dimensions
Depth: 244 mm
Height: 35 mm
Width: 244 mm

Network
WiFi: No
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet

Internal I/O
Front panel connector: Yes
TPM connector: Yes
Total number of SATA connectors: 4
RGB LED pin header: Yes
12V power connector: Yes
Audio connector: Yes
Number of Parallel ATA connectors: 1
Parallel connector: Yes
Front panel audio connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of chassis fan connectors: 3
USB 2.0 connectors: 2
Number of SATA III connectors: 4
EPS power connector (8pin): Yes
S/PDIF out connector: Yes
Serial port headers: 1
Power fan connector: Yes
ATX Power connector (24pin): Yes
CPU fan connector: Yes

BIOS
Clear CMOS jumper: Yes
Desktop Management Interface (DMI) version: 2.7
BIOS type: UEFI AMI

Packaging data
Package width: 265 mm
Package height: 54 mm
Package depth: 265 mm
Package weight: 990 g
Bundled software: Norton Internet Security

Packaging content
Batteries included: Yes

Storage controllers
Number of storage drives supported: 6
Number of HDDs supported: 4
RAID levels: 5, 1, 10, 0
RAID support: Yes
Supported storage drive interfaces: M.2, SATA III
Supported storage drive types: HDD & SSD

Rear panel I/O ports
Headphone outputs: 1
PS/2 ports quantity: 1
Microphone in: Yes
HDMI version: 2.1
VGA (DSub) ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) TypeA ports quantity: 3
HDMI ports quantity: 1
Linein: Yes
USB 2.0 ports quantity: 2
Digital audio optical out: 3
Ethernet LAN (RJ45) ports: 1
DisplayPort version: 1.4
DisplayPorts quantity: 2
USB connector type: USB TypeA

Expansion slots
PCI Express x1 slots: 1
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x4 slots: 1
PCI Express x1 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 2
PCI Express x16 (Gen 3.x) slots: 1
PCI Express x16 slots: 1

Battery
Battery technology: LithiumManganese Dioxide (LiMnO2)
Battery type: CR2032
Number of battery cells: 1
Battery weight: 3 g
Lithium weight per battery: 0.07 g

Logistics data
Products per shipping (inner) case: 1 pc(s)
Country of origin: China

Safety warning
Warnings: Do not open the memory module housing., Dispose of in accordance with local regulations for electronic waste., Protect from extreme temperatures.
