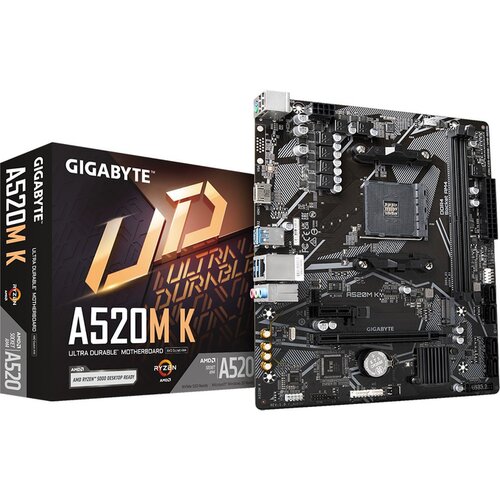

Gigabyte A520M K (rev. 1.0) AMD A520 Socket AM4 micro ATX cijene

Processor
Processor socket: Socket AM4
Maximum internal memory supported by processor: 64 GB
Compatible processor series: AMD Ryzen Threadripper 3000 Series, AMD Ryzen 3000 Series, AMD Ryzen Threadripper PRO 3000 WXSeries
Processor manufacturer: AMD
Supported processor sockets: Socket AM4

Graphics
Number of displays supported: 2
Discrete graphics support: Yes
HDCP: Yes
Maximum resolution: 4096 x 2160 pixels

Features
Windows operating systems supported: Windows 10 x64
Component for: PC
Cooling type: Active
Power source type: ATX
PC health monitoring: Power supply, Voltage, CPU, LED, Fan, Temperature
Audio output channels: 7.1 channels
Motherboard form factor: micro ATX
Motherboard chipset family: AMD
Audio chip: Realtek ALC887
Motherboard chipset: AMD A520

Memory
Number of memory slots: 2
Supported memory types: DDR4SDRAM
Memory slots type: DIMM
Memory channels: Dualchannel
ECC ompatibility: ECC & NonECC
Supported memory clock speeds: 2667, 5000, 3333, 4600, 3200, 2400, 4000, 4866, 2933, 3600, 2133 MHz
Maximum internal memory: 64 GB
Supported memory module capacities: 32GB, 8GB, 16GB, 1GB, 2GB, 4GB
Unbuffered memory: Yes

Weight & dimensions
Depth: 198 mm
Width: 233 mm

Network
WiFi: No
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet

Internal I/O
12V power connector: Yes
RGB LED pin header: Yes
Front panel audio connector: Yes
Serial port headers: 1
Total number of SATA connectors: 4
CPU fan connector: Yes
Chassis intrusion connector: Yes
ATX Power connector (24pin): Yes
TPM connector: Yes
Front panel connector: Yes
Power fan connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 4
USB 2.0 connectors: 2

BIOS
System Management BIOS (SMBIOS) version: 2.7
Desktop Management Interface (DMI) version: 2.7
Clear CMOS jumper: Yes
Clear CMOS button: Yes
BIOS type: UEFI AMI
ACPI version: 5.0
BIOS memory size: 128 Mbit
Bundled software: Norton Internet Security (OEM version) LAN bandwidth management software

Packaging content
Drivers included: Yes
Cables included: SATA

Storage controllers
RAID levels: 1, 10, 0
Supported storage drive interfaces: M.2, PCI Express 3.0, SATA III
Supported storage drive types: HDD & SSD

Rear panel I/O ports
Headphone outputs: 1
Serial ports quantity: 1
DVID ports quantity: 1
Ethernet LAN (RJ45) ports: 1
Digital audio optical out: 1
PS/2 ports quantity: 1
Microphone in: Yes
USB 2.0 ports quantity: 2
HDMI version: 2.1
USB connector type: USB TypeA
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) TypeA ports quantity: 4

Expansion slots
Number of M.2 (M) slots: 1
PCI Express x16 (Gen 3.x) slots: 1
PCI Express x1 (Gen 3.x) slots: 2
