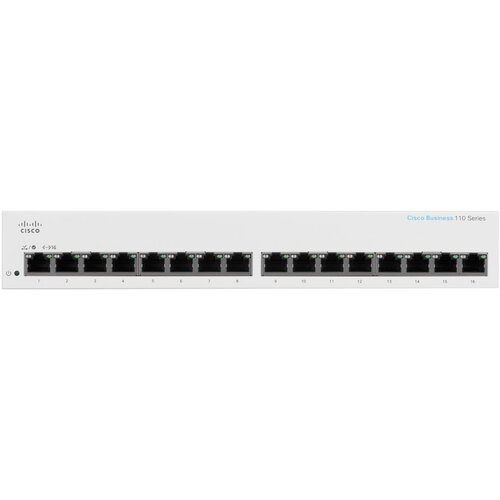

Cisco CBS110 Unmanaged L2 Gigabit Ethernet (10 /100 /1000) 1U Grey cijene

Design
Rack mounting: Yes
Form factor: 1U
Product colour: Grey
LED indicators: Yes

Power
Redundant power supply (RPS) support: No
Power supply included: Yes
Number of power supply units: 1
AC input voltage: 110 240 V
AC input frequency: 50 60 Hz

Security
Queue scheduling algorithms: Weighted Round Robin (WRR)

Operational conditions
Storage relative humidity (HH): 5 90%
Heat dissipation: 39.34 BTU/h
Operating temperature (TT): 0 40 C
Operating relative humidity (HH): 10 90%
Storage temperature (TT): 20 70 C

Management features
Switch layer: L2
Switch type: Unmanaged
Quality of Service (QoS) support: Yes

Weight & dimensions
Height: 44 mm
Width: 279 mm
Weight: 970 g
Depth: 170 mm

Network
Auto MDI/MDIX: Yes
10G support: No
Half duplex: Yes
Copper ethernet cabling technology: 1000BASET, 100BASETX, 10BASET
Headofline (HOL) blocking: Yes
Cable types supported: Cat5e
Flow control support: Yes
Full duplex: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
Networking standards: IEEE 802.3u, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az

Performance
Builtin processor: Yes
Flash memory: 16 MB
Mean time between failures (MTBF): 2685092 h
Internal memory: 128 MB
Processor frequency: 400 MHz

Packaging content
Quick start guide: Yes
Rack mount kit: Yes

Ports & interfaces
Gigabit Ethernet (copper) ports quantity: 16
Basic switching RJ45 Ethernet ports quantity: 16
Basic switching RJ45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Logistics data
Harmonized System (HS) code: 85176990

Data transmission
Number of queues: 4
Jumbo frames support: Yes
Switching capacity: 32 Gbit/s
Jumbo frames: 9216
Forwarding rate: 23.8 Mpps
MAC address table: 8192 entries

Power over Ethernet (PoE)
Power over Ethernet (PoE): No
