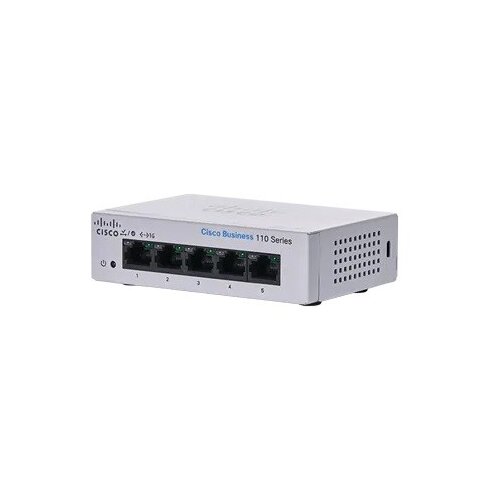

Cisco CBS110 UNMANAGED 5-PORT GE /DESKTOP EXT PS cijene

Certification: UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B

Design
Form factor: 1U
Rack mounting: Yes
LED indicators: Yes
Product colour: Grey

Power
Redundant power supply (RPS) support: No
DC input voltage: 12 V
Power supply included: Yes
Number of power supply units: 1

Security
Queue scheduling algorithms: Weighted Round Robin (WRR)

Operational conditions
Heat dissipation: 9.34 BTU/h
Storage temperature (TT): 20 70 C
Operating relative humidity (HH): 10 90%
Operating temperature (TT): 0 40 C
Storage relative humidity (HH): 5 90%

Management features
Switch type: Unmanaged
Quality of Service (QoS) support: Yes
Switch layer: L2

Weight & dimensions
Depth: 75 mm
Height: 30 mm
Width: 110 mm
Weight: 230 g

Network
Networking standards: IEEE 802.3x, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3az, IEEE 802.3u
Full duplex: Yes
10G support: No
Ethernet LAN data rates: 10,100,1000 Mbit/s
Copper ethernet cabling technology: 100BASETX, 10BASET, 1000BASET
Flow control support: Yes
Auto MDI/MDIX: Yes
Headofline (HOL) blocking: Yes
Half duplex: Yes

Performance
Mean time between failures (MTBF): 4243002 h

Packaging data
Quick start guide: Yes

Ports & interfaces
Gigabit Ethernet (copper) ports quantity: 5
Basic switching RJ45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Basic switching RJ45 Ethernet ports quantity: 5

Logistics data
Harmonized System (HS) code: 85176990

Data transmission
MAC address table: 2048 entries
Switching capacity: 10 Gbit/s
Forwarding rate: 7.4 Mpps
Number of queues: 4
Jumbo frames: 9216
Jumbo frames support: Yes

Power over Ethernet (PoE)
Power over Ethernet (PoE): No
