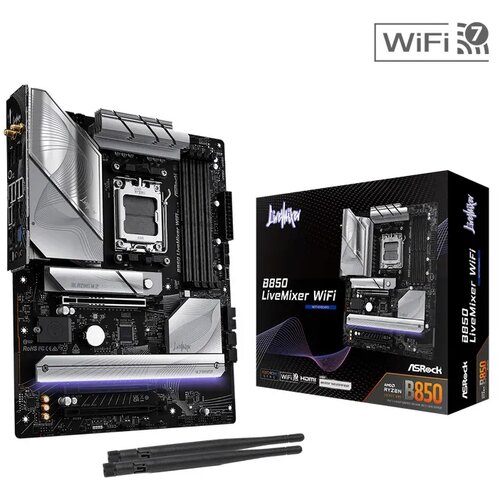

AsRock B850 LiveMixer WiFi AMD B850 Socket AM5 ATX cijene

Processor
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 9000 Series, AMD Ryzen 8000 Series
Processor manufacturer: AMD
Supported processor sockets: Socket AM5
Processor socket: Socket AM5

Graphics
Maximum resolution: 3840 x 2160 pixels
HDCP: Yes
Parallel processing technology support: Not supported
Certification: FCC, CE, ErP/EuP

Features
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Motherboard form factor: ATX
Motherboard chipset: AMD B850
Audio chip: Realtek ALC1220
Motherboard chipset family: AMD
Product colour: Black
Audio output channels: 7.1 channels

Memory
Memory slots type: DIMM
Supported memory types: DDR5SDRAM
Maximum internal memory: 256 GB
Number of memory slots: 4
Memory channels: Dualchannel
Unbuffered memory: Yes
ECC ompatibility: ECC & NonECC

Weight & dimensions
Depth: 244 mm
Width: 305 mm

Network
WiFi standards: 802.11g, 802.11a, WiFi 6 (802.11ax), WiFi 4 (802.11n), 802.11b, WiFi 5 (802.11ac), WiFi 7 (802.11be), WiFi 6E (802.11ax)
LAN controller: Dragon RTL8125BG
Ethernet interface type: 2.5 Gigabit Ethernet
Top WiFi standard: WiFi 7 (802.11be)
Ethernet LAN: Yes
Bluetooth: Yes
WiFi: Yes
Bluetooth version: 5.4

Internal I/O
Number of chassis fan connectors: 3
RGB LED pin header: Yes
ATX Power connector (24pin): Yes
CPU fan connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of SATA III connectors: 2
12V power connector: Yes
Front panel audio connector: Yes
EPS power connector (8pin): Yes
USB 2.0 connectors: 2
TPM connector: Yes
Number of RGB LED pin headers: 4
Number of CPU fan connectors: 2
Number of water pump connectors: 1
USB 3.2 Gen 2x2 connectors: 1
Number of EPS power connectors (8pin): 1

BIOS
BIOS type: UEFI AMI

Packaging content
Cables included: SATA
Antenna included: Yes

Storage controllers
Supported storage drive types: HDD & SSD
RAID levels: 0, 10, 1
RAID support: Yes
Supported storage drive interfaces: PCI Express 4.0, PCI Express 5.0, SATA III
Number of storage drives supported: 5

Rear panel I/O ports
WiFiAP antenna jack: 2
USB 3.2 Gen 2 (3.1 Gen 2) TypeA ports quantity: 1
Microphone in: Yes
Ethernet LAN (RJ45) ports: 1
HDMI version: 2.1
DisplayPorts quantity: 1
DisplayPort version: 1.4
S/PDIF out port: Yes
HDMI ports quantity: 1
USB connector type: USB TypeC, USB TypeA
Headphone outputs: 1
USB 2.0 ports quantity: 8
USB 3.2 Gen 1 (3.1 Gen 1) TypeA ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) TypeC ports quantity: 1

Expansion slots
Number of M.2 (M) slots: 3
PCI Express x16 (Gen 4.x) slots: 2
PCI Express x16 (Gen 5.x) slots: 1
1st M.2 highest PCI Express generation: 5.0
2nd M.2 largest key size: 2280
1st M.2 largest key size: 2280
3rd M.2 largest key size: 2280
2nd M.2 highest PCI Express generation: 4.0
3rd M.2 highest PCI Express generation: 4.0

Safety warning
Warnings: Do not disassemble to avoid damage to internal components and loss of warranty., Avoid contact with liquids to prevent electronic damage., Dispose of in accordance with local regulations for electronic waste.
