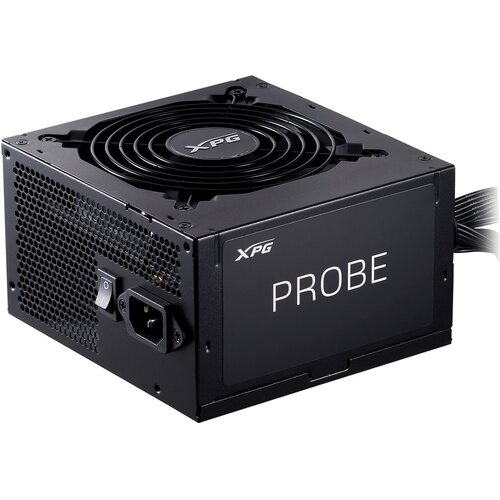

Opis i karakteristike
Design
Cooling type: Active
Product colour: Black
Fan speed: 2160 2640 RPM
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Power
Max output current (+5Vsb): 2.5 A
AC input frequency: 47 63 Hz
AC input voltage: 100 240 V
Max output current (+5V): 17 A
Power protection features: Short circuit, Over voltage, Under voltage, Surge & inrush protection (SIP), Over power
Max output current (+3.3V): 19 A
Input current: 10 A
Power factor: 0.99
Max output current (+12V): 54 A
Total power: 700 W
Max output current (12V): 0.3 A
Power Factor Correction (PFC) type: Active
Operational conditions
Operating temperature (TT): 0 40 C
Weight & dimensions
Width: 150 mm
Depth: 140 mm
Weight: 1.53 kg
Height: 86 mm
Certification: CB, CE, FCC, TUV, cTUVus, BSMI, CCC, NOM, FCC IC, UKCA,EAC, RCM
Performance
Bearing technology: Sleeve
Power supply unit (PSU) form factor: ATX
80 PLUS certification: 80 PLUS Bronze
Mean time between failures (MTBF): 100000 h
Purpose: PC
ATX version: 2.52
Ports & interfaces
Peripheral (Molex) power connectors (4pin): 2
Motherboard power connector: 20+4 pin ATX
ATX Power connector (24pin): Yes
EPS power connector (4+4 pin): Yes
PCI Express power connectors (6+2 pin): 2
Number of SATA power connectors: 5
Cabling type: NonModular
