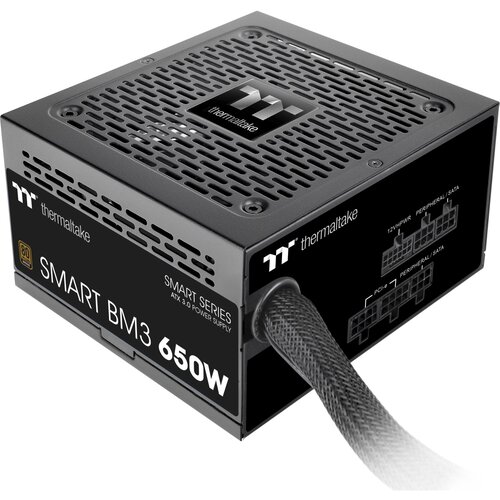

Thermaltake Smart BM3 650W power supply, black
80 PLUS Bronze certified semimodular power supply, compatible with Intel's ATX 3.0 specifications. It is equipped with a native PCIe Gen 5.0 connector and can power entrylevel nextgen GPUs with a 12VHPWR cable.
Features:
- Power: 650 W
- PCIe Gen 5.0, 12VHPWR, 16pin connector (can supply up to 300 W for PCIe 5.0 graphics cards)
- Fully compatible with Intel ATX 3.0 standards
- PCIe Gen 5.0 Ready
- 120 mm FDB fan that provides excellent airflow
- Smart Zero Fan, the fan only turns when the load exceeds 20% of the power supply
- Durable and reliable electrolytic capacitors
- Semimodular: Power supply unit fulfils ATX 3.0 standards
- Integrated protection in industrial quality: OCP (Over Current Protection), OVP (Over Voltage Protection), UVP (Under Voltage Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), OTP (Over Temperature Protection)
- Active PFC
- Power Good Signal: 100150 msec
- Operating temperature: 5°C to + 45°C
- Efficiency: 80 PLUS Bronze at 115 VAC
- MTBF: approx. 100,000 h
- Protection: OCP / OVP / UVP / OPP / OTP / SCP
- Connections:
- 1x 24pin main power supply
- 2x 4+4pin CPU power connection
- 3x SATA 5pin
- 4x 6+2pin PCIe connection
- 1x 12+4pin PCIe connector
- 7x 4pin peripheral connection
- Dimensions (W x H x D): 150 x 86 x 140 mm
- Colour: black
