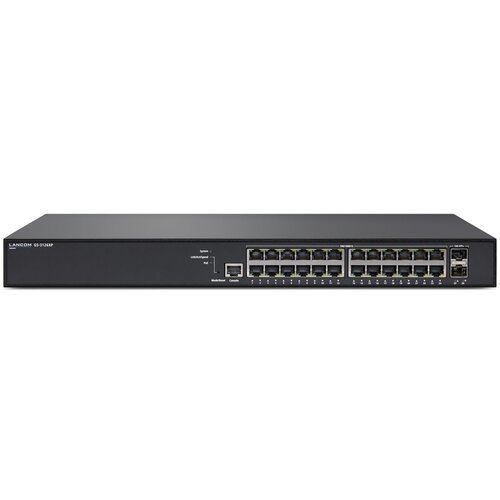

LANCOM GS-3126XP Managed L3 Gigabit Ethernet (10 /100 /1000) Power over Ethernet (PoE) 1U Black cijene

Design
Number of fans: 1 fan(s)
Form factor: 1U
Rack mounting: Yes
LED indicators: PoE, Speed, System, Activity, Link
Product colour: Black
Housing material: Metal

Power
Power source: AC/PoE
Power consumption (max): 230 W
Power supply included: Yes
AC input frequency: 50 60 Hz
AC input voltage: 100 240 V

Security
IGMP snooping: Yes
DHCP features: DHCP client, DHCP relay, DHCP server, DHCP Option 67, DHCP snooping, DHCP Option 66, DHCP Option 82
Loop protection: Yes
Security algorithms: SNMPv3
MAC address filtering: Yes
SSH/SSL support: Yes
Authentication: Guest VLAN
IGMP proxy: Yes
Access Control List (ACL): Yes
Authentication type: RADIUS, IEEE 802.1x, TACACS+

Operational conditions
Operating temperature (TT): 0 40 C
Operating relative humidity (HH): 10 90%
Heat dissipation: 154 BTU/h

Management features
Quality of Service (QoS) support: Yes
Switch layer: L3
Switch type: Managed
Webbased management: Yes
Configuring Location Settings (CLI): Yes

Weight & dimensions
Depth: 211 mm
Height: 44 mm
Width: 442 mm
Weight: 2.7 kg

Network
Networking standards: IEEE 802.3ad, IEEE 802.1s, IEEE 802.1w, IEEE 802.3u, IEEE 802.3az, IEEE 802.1Q, IEEE 802.3x, IEEE 802.1ab, IEEE 802.1x, IEEE 802.1ad, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1ak, IEEE 802.1D, IEEE 802.3z, IEEE 802.3ae
Virtual LAN features: Voice VLAN, Tagged VLAN, VLAN Identifier ( VLAN ID), MVRP, Private VLAN, Portbased VLAN, MAC addressbased VLAN, IP subnetbased VLAN
Broadcast storm control: Yes
Flow control support: Yes
Number of VLANs: 4096
Spanning tree protocol: Yes
VLAN support: Yes
10G support: Yes
Port mirroring: Yes
Link aggregation: Yes

Performance
Firmware upgradeable: Yes
Noise level: 40 dB

Packaging data
Package width: 470 mm
Package height: 985 mm
Package depth: 540 mm
Package weight: 4 kg
Mounting brackets included: Yes

Packaging content
Cables included: AC, Serial
Quick start guide: Yes

Certificates
Compliance certificates: Federal Communications Commission (FCC), CE

Protocols
GARP VLAN Registration Protocol (GVRP): Yes
IP Source Guard (IPSG): Yes

Ports & interfaces
Basic switching RJ45 Ethernet ports quantity: 24
Console port: RJ45
SFP+ module slots quantity: 2
Basic switching RJ45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 24
Power connector: ACin jack

Logistics data
Customs product code (TARIC): 85176200
Harmonized System (HS) code: 85176990
Country of origin: Taiwan

Data transmission
Jumbo frames: 10240
Jumbo frames support: Yes
Throughput: 130 Mpps
Switching capacity: 88 Gbit/s
Storeandforward: Yes
Number of static routes: 128
MAC address table: 32000 entries
Static route: Yes

Power over Ethernet (PoE)
Power over Ethernet (PoE): Yes
Total Power over Ethernet (PoE) budget: 185 W
Power over Ethernet plus (PoE+) ports quantity: 24

Multicast features
Multicast Listener Discovery (MLD) snooping: Y
Multicast support: Yes
