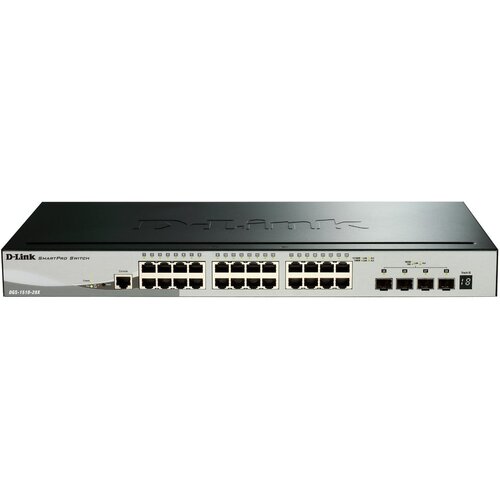

D-link Managed - L3 - Gigabit Ethernet (10/100/1000) - Full duplex - Power over Ethernet (PoE) M RM cijene

Design
Product colour: Black
LED indicators: Speed, Activity, Power, Link
Electromagnetic compatibility: CE A, VCCI A, FCC A, IC, BSMI
Rack mounting: Yes

Power
AC input voltage: 100 240 V
Power supply included: Yes
Power consumption (max): 455.1 W

Security
Security algorithms: SSH, TTLS, PEAP, MD5, EAP, SSL/TLS, LEAP
Loop protection: Yes
DHCP features: DHCP snooping, DHCP server
IGMP snooping: Yes
Access Control List (ACL): Yes
Queue scheduling algorithms: Weighted Round Robin (WRR)
IPMACPort binding: Yes
Access Control List (ACL) rules: 768

Operational conditions
Storage temperature (TT): 20 70 C
Operating temperature (TT): 5 50 C
Operating relative humidity (HH): 0 95%
Heat dissipation: 1551.891 BTU/h
Storage relative humidity (HH): 0 95%

Management features
Webbased management: Yes
Quality of Service (QoS) support: Yes
Switch layer: L3
Switch type: Managed
ARP inspection: Yes
System event log: Yes
Configuring Location Settings (CLI): Yes

Weight & dimensions
Weight: 3.46 kg
Height: 44 mm
Depth: 250 mm
Width: 440 mm

Network
Networking standards: IEEE 802.3af, IEEE 802.3at
Flow control support: Yes
Copper ethernet cabling technology: 10BASET, 100BASETX, 1000BASET
Number of VLANs: 4094
Auto MDI/MDIX: Yes
VLAN support: Yes
Port mirroring: Yes
10G support: Yes
Full duplex: Yes
Broadcast storm control: Yes
Headofline (HOL) blocking: Yes
Virtual LAN features: Voice VLAN
Cable types supported: Cat5, Cat5e
Spanning tree protocol: Yes
Link aggregation: Yes

Performance
Firmware upgradeable: Yes
Mean time between failures (MTBF): 463430.16 h
Memory type: DDR3SDRAM
Noise level: 50.8 dB
Internal memory: 2048 MB
Flash memory: 64 MB

Packaging data
Package weight: 4.76 kg
Package depth: 563 mm
Package width: 393 mm
Package height: 89 mm

Ports & interfaces
Console port: RJ45
Basic switching RJ45 Ethernet ports quantity: 24
SFP+ module slots quantity: 4
Basic switching RJ45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Data transmission
Packet buffer memory: 12 MB
MAC address table: 16000 entries
Switching capacity: 128 Gbit/s
Jumbo frames support: Yes
Storeandforward: Yes
Static route: Yes
Jumbo frames: 12000
Number of static routes: 124
Forwarding rate: 95.24 Mpps

Power over Ethernet (PoE)
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) power per port: 15.4 W
Power over Ethernet (PoE) ports quantity: 24
Total Power over Ethernet (PoE) budget: 370 W

Multicast features
Multicast support: Yes

Optical fiber
Fiber ethernet cabling technology: 1000BASEZX, 1000BASESX, 100BASEFX, 1000BASELX, 1000BASELHX, 1000BASEX
