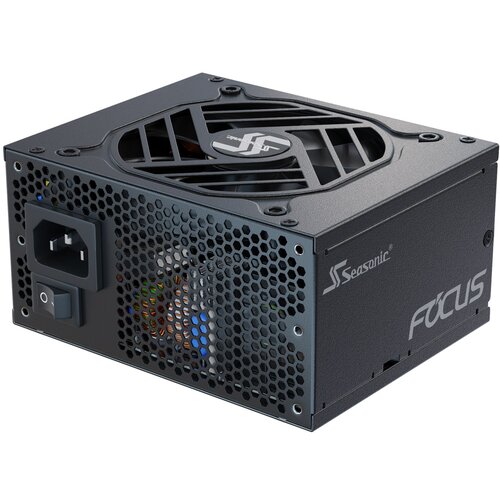

Seasonic FOCUS SGX-750 (2021) power supply unit 750 W 20+4 pin ATX SFX Black cijene

Design
Fan diameter: 9.2 cm
Product colour: Black
Number of fans: 1 fan(s)
Cooling type: Active

Power
Combined power (12V): 3.6 W
AC input frequency: 50 60 Hz
Combined power (+5Vsb): 15 W
Max output current (+5Vsb): 3 A
Combined power (+3.3V): 100 W
AC input voltage: 100 240 V
Maximum input current (@220V): 5 A
Combined power (+5V): 100 W
Combined power (+12V): 744 W
Total power: 750 W
Max output current (+3.3V): 20 A
Max output current (+12V): 62 A
Maximum input current (@110V): 10 A
Max output current (+5V): 20 A
Max output current (12V): 0.3 A

Operational conditions
Operating temperature (TT): 0 50 C

Weight & dimensions
Depth: 100 mm
Height: 63.5 mm
Width: 125 mm

Performance
Mean time between failures (MTBF): 100000 h
Power supply unit (PSU) form factor: SFX
80 PLUS certification: 80 PLUS Gold
Purpose: PC

Packaging data
Package type: Box

Ports & interfaces
Peripheral (Molex) power connectors (4pin): 3
CPU power cable length: 40 cm
Cabling type: FullyModular
SATA power cable length: 600
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 35 cm
Number of SATA power connectors: 6
Peripheral (Molex) power cable length: 470, 700 mm
CPU power connector (4+4 pin): Yes

Logistics data
Harmonized System (HS) code: 84733020
