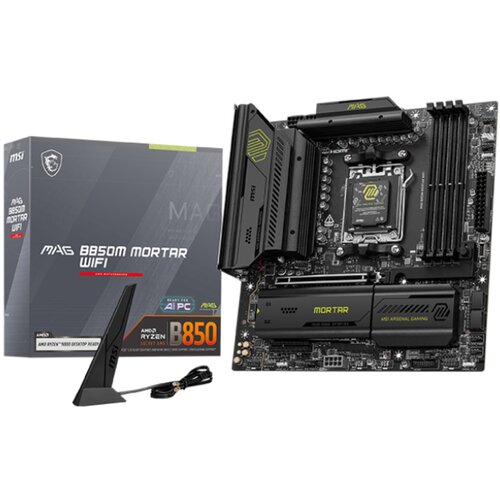

MSI MAG B850M MORTAR WIFI motherboard AMD B850 Socket AM5 micro ATX cijene

Processor
Supported processor sockets: Socket AM5
Compatible processor series: AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, AMD Ryzen 7000 Series
Processor socket: Socket AM5
Processor manufacturer: AMD

Graphics
Onboard graphics card: No

Features
Windows operating systems supported: Windows 11 x64
Motherboard chipset: AMD B850
Audio output channels: 7.1 channels
Audio chip: Realtek ALC4080
Motherboard chipset family: AMD
Motherboard form factor: micro ATX
Product colour: Black

Memory
ECC ompatibility: NonECC
Supported memory clock speed (max): 8200 MHz
Memory channels: Dualchannel
Number of memory slots: 4
Supported memory types: DDR5SDRAM
Memory slots type: DIMM
Supported memory clock speeds: 4800, 5600 MHz, 8200 MHz, 6400
Maximum internal memory: 256 GB

Weight & dimensions
Depth: 243.8 mm
Width: 243.8 mm

Network
Bluetooth version: 5.4
WiFi standards: 802.11b, WiFi 6E (802.11ax), WiFi 5 (802.11ac), WiFi 7 (802.11be), 802.11a, WiFi 6 (802.11ax), WiFi 4 (802.11n), 802.11g
WiFi: Yes
Ethernet LAN: Yes
Ethernet interface type: 5 Gigabit Ethernet
Top WiFi standard: WiFi 7 (802.11be)
Bluetooth: Yes

Internal I/O
Front panel connector: Yes
Number of water pump connectors: 1
CPU fan connector: Yes
Number of CPU fan connectors: 2
Number of RGB LED pin headers: 3
Total number of SATA connectors: 4
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
RGB LED pin header: Yes
Number of SATA III connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
USB 2.0 connectors: 4
Front panel audio connector: Yes
ATX Power connector (24pin): Yes

BIOS
BIOS type: UEFI AMI

Storage controllers
Number of storage drives supported: 7
Number of HDDs supported: 4
RAID levels: 0, 10, 1
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2
RAID support: Yes

Rear panel I/O ports
HDMI version: 2.1
USB 3.2 Gen 2 (3.1 Gen 2) TypeA ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) TypeA ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) TypeC ports quantity: 2
HDMI ports quantity: 1
Ethernet LAN (RJ45) ports: 1

Expansion slots
1st M.2 highest PCI Express generation: 5.0
1st M.2 largest key size: 2280
3rd M.2 highest PCI Express generation: 4.0
PCI Express x16 (Gen 5.x) slots: 1
2nd M.2 highest PCI Express generation: 5.0
2nd M.2 largest key size: 2280
3rd M.2 largest key size: 2280
PCI Express x4 slots: 1
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 3.x) slots: 1
PCI Express x16 slots: 1
Number of M.2 (M) slots: 3
