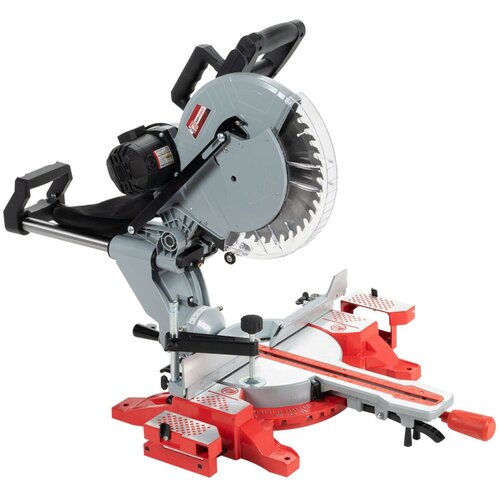

Holzmann KAP305ECO 230V crosscut and mitre saw
The HOLZMANN KAP305ECO_230V is a solid and reliable crosscut and mitre saw that can cope with the most diverse requirements in your workshop. Easy handling thanks to the builtin laser that indicates the cutting line, the sophisticated design of the saw unit that allows a cutting height of 105 mm, plus easy transportability this machine impresses on all fronts.
Features:
- Extremely quiet and gentle on the mechanics thanks to belt drive
- Saw unit can be swivelled left/right (45°/+45°) and rotated (45°/+45°)
- Extendable backgauge
- Depth stop included in the scope of delivery
- Particularly smoothrunning and precisionmounted double guide pulley system
- Very solid diecast aluminium base frame ensures optimum stability
Technical data:
- Motor power: 2000 W
- Voltage: 230 V
- Speed: 3800
- Protection class: II
- IP20
- Cable length: 2 m
- Suction connection Ø: 37.5 mm
- Installation dimensions: 890 x 600 x 490 (max. 1140 x 1020 x 690)
- Max. Cutting height 90°: 105 mm
- Max. Max. cutting height 45°: 60 mm
- Max. Cutting length 90°: 330 mm
- Max. Cutting length 45°: 230 mm
- Saw blade Ø: 305 mm
- Bore Ø: 25.4 mm
- Sound pressure level: 95 dB(A)
- Colour: red / grey
- Weight: 21 kg
Scope of delivery:
- Holzmann KAP305ECO 230V crosscut and mitre saw
- Carbide circular saw blade
- laser
- Table extension
