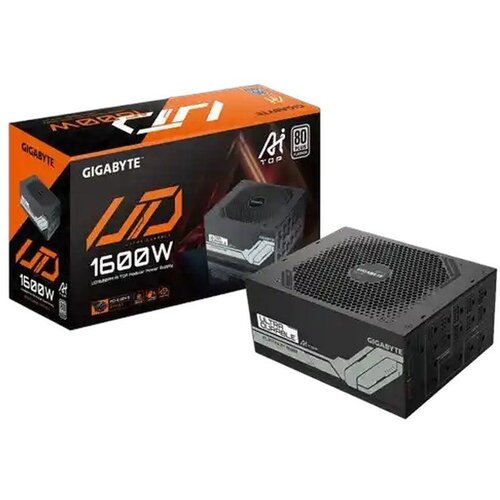

Gigabyte UD1600PM PG5 AI TOP Power Supply - PCIe 5.0, 80 PLUS Platinum, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug cijene
Design Fan location: Top On/off switch: Yes Product colour: Black Number of fans: 1 fan(s) Fan diameter: 12 cm Cooling type: Active Power Input current: 15 7.5 A Efficiency: 92% AC input voltage: 100 240 V Power protection features: Short circuit, Over voltage, Over power, Overheating, Under voltage, Over current Power Good signal delay range: 100 150 ms AC input frequency: 50/60 Hz Combined power (+5Vsb): 17.5 W Total power: 1600 W Power factor: 0.9 Combined power (+3.3V): 150 W Max output cur
Položaj proizvoda u cjenovnom razreduPrikazan je tvoj odabrani proizvod te artikli koje kupci najčešće biraju u kategoriji Napajanja. Graf prikazuje kako se potražnja mijenja kroz različite cjenovne razrede. Prilagodi prikaz TOP 10 proizvoda svom budžetu odabirom cjenovnog razreda — Jeftiniji / Osnovni / Premium — ili odabirom brenda.
Opis i karakteristike
Design Fan location: Top On/off switch: Yes Product colour: Black Number of fans: 1 fan(s) Fan diameter: 12 cm Cooling type: Active
Power Input current: 15 7.5 A Efficiency: 92% AC input voltage: 100 240 V Power protection features: Short circuit, Over voltage, Over power, Overheating, Under voltage, Over current Power Good signal delay range: 100 150 ms AC input frequency: 50/60 Hz Combined power (+5Vsb): 17.5 W Total power: 1600 W Power factor: 0.9 Combined power (+3.3V): 150 W Max output current (+12V): 133.3 A Combined power (+5V): 150 W Max output current (+3.3V): 30 A Max output current (12V): 0.8 A Power Factor Correction (PFC) type: Active Max output current (+5V): 30 A Hold time: 16 ms Max output current (+5Vsb): 3.5 A Combined power (+12V): 1600 W Combined power (12V): 9.6 W
Weight & dimensions Depth: 190 mm Weight: 5.3 kg Height: 86 mm Width: 150 mm
Performance ATX version: 3.1 Bearing technology: DBB Purpose: PC Power supply unit (PSU) form factor: ATX Mean time between failures (MTBF): 100000 h 80 PLUS certification: 80 PLUS Platinum
Packaging data Package width: 410 mm Package depth: 219 mm Package type: Box Package height: 145 mm Package weight: 5.58 kg
Ports & interfaces EPS power connector (4+4 pin): Yes PCI Express power connectors (6+2 pin): 8 Motherboard power connector: 20+4 pin ATX Number of SATA power connectors: 16 Peripheral (Molex) power connectors (4pin): 6 CPU power connector (4+4 pin): Yes ATX power connector (20+4 pin): Yes Motherboard power cable length: 61 cm SATA power cable length: 150, 650 mm Cabling type: FullyModular PCI Express connector: Yes
Logistics data Warranty period: 10 year(s)
Prijavi pogrešku
Napajanje
Obilk napajanja
ATX
Ulazna struja (A)
15 - 7.5 A
Efikasnost (%)
92
Vrijeme držanja (ms)
16
Funkcije zaštite
Zaštita od prejake struje, Zaštita od preniskog napona, Prekomjereno zagrijavanje, Zaštita od prevelike snage, Zaštita od kratkog spoja, Zaštita od previsokog napona
Faktor snage
0.9
Tip korekcije faktora snage (PFC)
Aktivno
Kombinirana snaga (+3,3V) (W)
150
Kombinirana snaga (+12V) (W)
1600
Kombinirana snaga (+5V) (W)
150
Kombinirana snaga (-12V) (W)
9.6
Kombinirana snaga (+5Vsb) (W)
17.5
Max output current (+3.3V) (A)
30
Max output current (+12V) (A)
133.3
Max output current (+5V) (A)
30
Max output current (-12V) (A)
0.8
Max output current (+5Vsb) (A)
3.5
Ulazna frekvencija izmjenične struje (Hz)
50/60 Hz
Ulazni napon izmjenične struje (V)
100 - 240
Ukupna snaga (W)
1600
Raspon vremena kašnjenja signala ispravnog napajanja (ms)
