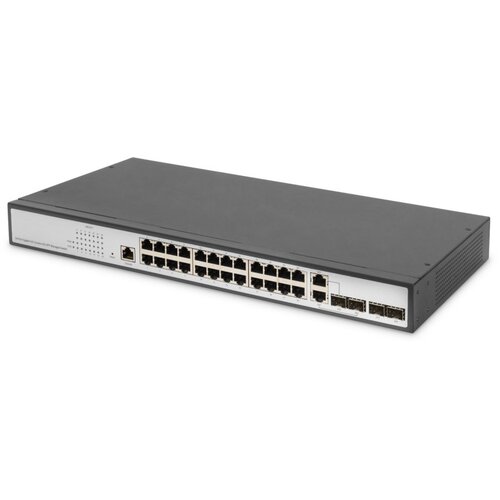

DIGITUS 24Port Gigabit Switch 19inch, Managed, 2 Uplinks
Highest bandwidth and performance for professional requirements. Optimal management options via the user interface.
Features:
- The manageable Gigabit network switch is designed for use in medium to large network environments and can be operated as a desktop switch or installed in a 19" rack
- For integration into your network, 24 RJ45 ports are available as well as 2 x RJ45 ports and 2 x SFP/RJ45 combo ports as uplink, which also enable connection via fibre optics Furthermore, a CLI console port is available
- The L2 management functions include setting options such as: VLAN, link aggregation, port mirroring, port trunking, SNMP network management, QoS/CoS applications and STP/RSTP/MSTP.
- Supported network standards: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE802.3ad, IEEE802.3az as well as MDI/MDIX, 10/100/1000BaseTX, IEEE802.1x and IEEE802.1Q.
- In corporate networks, the L2 switch can, for example, separate individual VLANs from each other and bundle several ports to achieve a higher transfer rate to another switch
Technical data:
- 24x RJ45 ports (1000Mbps)
- 2x RJ45/ SFP combo ports for fibre optic connection or Ethernet
- 2x SFP uplink ports for SFP modules
- 1x RJ45 console port
- Compatible with the standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3z and 802.3ad Auto MDI/MDIX function
- 8K MAC addresses
- QoS support of Layer 4 classification
- Port mirroring for efficient network monitoring
- Port Trunk for bandwidth expansion
- VLAN for performance and security
- 802.1x port authentication
- SNMP network management
- Integrated webbased management
- Overvoltage protection +/ 6 kV
- Dimensions (W x D x H): 440 x 208 x 44 mm
- Number of ports: 24
- Ethernet speed: Gigabit
- Industrial use: no
- Number of ports (uplink): 4
- Managed: yes
- Mounting type: 19 inch, desktop
- Suitable for outdoor use: no
- PoE (Power over Ethernet): no
- Protection against vandalism: no
- Uplink port connection: RJ45/SFP
- VLAN: yes
