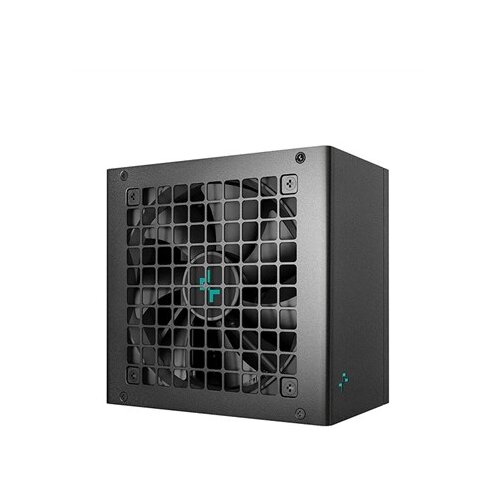

DeepCool PN650M power supply unit 650 W 20+4 pin ATX ATX Black cijene

Technical details
Sustainability certificates: Triman

Design
Fan diameter: 12 cm
Fan location: Top
On/off switch: Yes
Number of fans: 1 fan(s)
Product colour: Black
Cooling type: Active

Power
Power protection features: Over power, Under voltage, Short circuit, Over voltage, No load operation, Surge & inrush protection (SIP), Overheating, Surge protection
Max output current (+5Vsb): 3 A
Combined power (+3.3V): 100 W
Combined power (+12V): 648 W
Max output current (+5V): 20 A
Combined power (12V): 3.6 W
Hold time: 16 ms
Efficiency: 90%
Power Factor Correction (PFC) type: Active
Max output current (+12V): 54 A
Max output current (+3.3V): 20 A
Combined power (+5V): 100 W
Max output current (12V): 0.3 A
Combined power (+5Vsb): 15 W
Total power: 650 W
AC input voltage: 100 240 V
AC input frequency: 50/60 Hz
Input current: 10 5 A

Operational conditions
Operating temperature (TT): 0 40 C

Weight & dimensions
Depth: 140 mm
Height: 86 mm
Width: 150 mm

Performance
Power supply unit (PSU) form factor: ATX
Bearing technology: FDB
Purpose: PC
80 PLUS certification: 80 PLUS Gold
Mean time between failures (MTBF): 100000 h
ATX version: 3.1

Packaging data
Package type: Box

Packaging content
Cable tie(s) included: Yes
Cables included: AC

Certificates
Compliance certificates: EAC, WEEE, RCM, Federal Communications Commission (FCC), CCC, RoHS, CE

Ports & interfaces
PCI Express power connectors (16pin): 1
CPU power cable length: 70 cm
SATA power cable length: 750, 650 mm, 550, 450
Cabling type: FullyModular
PCI Express power connectors (6+2 pin): 3
Number of SATA power connectors: 8
Peripheral (Molex) power cable length: 450 mm
Motherboard power cable length: 55 cm
ATX power connector (20+4 pin): Yes
Motherboard power connector: 20+4 pin ATX
CPU power connector (4+4 pin): Yes
Peripheral (Molex) power connectors (4pin): 2

Logistics data
Warranty period: 10 year(s)
