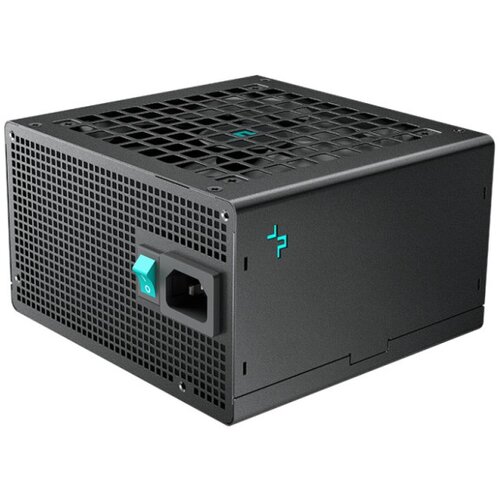

DeepCool PL800D power supply unit 800 W 20+4 pin ATX ATX Black cijene
Technical details Sustainability certificates: Triman, ErP Sustainability compliance: Yes Design Fan location: Top Product colour: Black On/off switch: Yes Cooling type: Active Fan diameter: 12 cm Number of fans: 1 fan(s) Power Total power: 800 W Combined power (+5Vsb): 15 W Efficiency: 85% Power protection features: No load operation, Surge & inrush protection (SIP), Overheating, Surge protection, Over voltage, Under voltage, Over current, Over power Hold time: 16 ms Power Good signal delay ra
Položaj proizvoda u cjenovnom razreduPrikazan je tvoj odabrani proizvod te artikli koje kupci najčešće biraju u kategoriji Napajanja. Graf prikazuje kako se potražnja mijenja kroz različite cjenovne razrede. Prilagodi prikaz TOP 10 proizvoda svom budžetu odabirom cjenovnog razreda — Jeftiniji / Osnovni / Premium — ili odabirom brenda.
Design Fan location: Top Product colour: Black On/off switch: Yes Cooling type: Active Fan diameter: 12 cm Number of fans: 1 fan(s)
Power Total power: 800 W Combined power (+5Vsb): 15 W Efficiency: 85% Power protection features: No load operation, Surge & inrush protection (SIP), Overheating, Surge protection, Over voltage, Under voltage, Over current, Over power Hold time: 16 ms Power Good signal delay range: 100 150 ms Combined power (12V): 3.6 W Power Factor Correction (PFC) type: Active Max output current (+3.3V): 20 A Combined power (+12V): 648 W Max output current (+12V): 54 A AC input voltage: 100 240 V Combined power (+5V): 100 W Combined power (+3.3V): 100 W AC input frequency: 50/60 Hz Input current: 9 4.5 A Max output current (+5V): 20 A Max output current (+5Vsb): 3 A Max output current (12V): 0.3 A
Operational conditions Operating temperature (TT): 0 40 C
Weight & dimensions Width: 150 mm Height: 86 mm Depth: 140 mm
Performance Bearing technology: HYB ATX version: 3.0 80 PLUS certification: 80 PLUS Bronze Mean time between failures (MTBF): 100000 h Purpose: PC Power supply unit (PSU) form factor: ATX
Packaging data Package type: Box Certification: CE/FCC/CCC/RCM/EAC/CAN ICES003(B)/NMB003(B) /TUVRH
Certificates Compliance certificates: RoHS, WEEE
Ports & interfaces PCI Express power connectors (16pin): 1 Peripheral (Molex) power connectors (4pin): 2 PCI Express power connectors (6+2 pin): 3 Motherboard power connector: 20+4 pin ATX Motherboard power cable length: 55 cm ATX power connector (20+4 pin): Yes SATA power cable length: 550, 450, 650 Number of SATA power connectors: 6 CPU power connector (4+4 pin): Yes Cabling type: NonModular
Prijavi pogrešku
Napajanje
Obilk napajanja
ATX
Ulazna struja (A)
10 - 5 A, 9 - 4.5 A
Efikasnost (%)
85
Vrijeme držanja (ms)
16
Funkcije zaštite
Zaštita od prejake struje, No load operation, Zaštita od preniskog napona, Prekomjereno zagrijavanje, Prenaponska zaštita, Zaštita od prevelike snage, Surge & inrush protection (SIP), Zaštita od kratkog spoja, Zaštita od previsokog napona
Tip korekcije faktora snage (PFC)
Aktivno
Kombinirana snaga (+3,3V) (W)
100
Kombinirana snaga (+12V) (W)
648
Kombinirana snaga (+5V) (W)
100
Kombinirana snaga (-12V) (W)
3.6
Kombinirana snaga (+5Vsb) (W)
15
Max output current (+3.3V) (A)
20
Max output current (+12V) (A)
54
Max output current (+5V) (A)
20
Max output current (-12V) (A)
0.3
Max output current (+5Vsb) (A)
3
Ulazna frekvencija izmjenične struje (Hz)
50/60 Hz
Ulazni napon izmjenične struje (V)
100 - 240
Ukupna snaga (W)
800
Raspon vremena kašnjenja signala ispravnog napajanja (ms)
