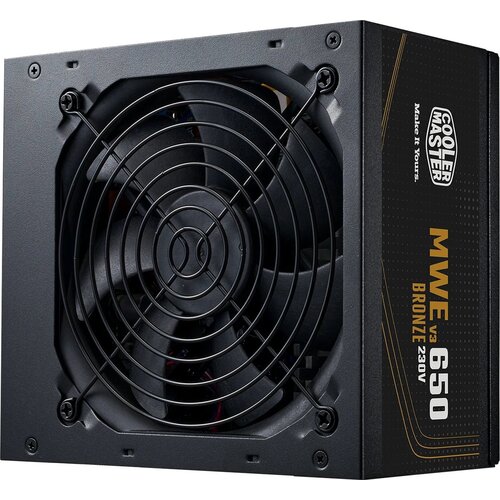

Cooler Master MWE Bronze 650 V3 230V power supply unit 650 W 24-pin ATX ATX Black cijene

Technical details
Compliance certificates: RoHS, CE, China Compulsory Certification (CCC), RCM, BIS, Federal Communications Commission (FCC), UKCA, EAC

Design
Cooling type: Active
Number of fans: 1 fan(s)
Fan diameter: 12 cm
Product colour: Black

Power
Combined power (+3.3V): 120 W
Max output current (+5Vsb): 3 A
Power Good signal delay range: 100 150 ms
Combined power (+5V): 120 W
Max output current (+12V): 54 A
Max output current (+5V): 19 A
Total power: 650 W
Power protection features: Under voltage, Overheating, Short circuit, Over voltage, Over power
AC input voltage: 200 240 V
Combined power (+5Vsb): 15 W
Hold time: 16 ms
Combined power (12V): 3.6 W
Combined power (+12V): 648 W
Max output current (12V): 0.3 A
Max output current (+3.3V): 19 A
AC input frequency: 50/60 Hz
Input current: 5 A
Efficiency: 88%
Power Factor Correction (PFC) type: Active

Operational conditions
Operating temperature (TT): 0 40 C

Weight & dimensions
Weight: 1.65 kg
Height: 86 mm
Depth: 140 mm
Width: 150 mm
Certification: ErP 2014 Lot 3

Performance
80 PLUS certification: 80 PLUS Bronze
Mean time between failures (MTBF): 100000 h
Purpose: PC/Server
ATX version: 3.1
Bearing technology: HDB
Power supply unit (PSU) form factor: ATX

Packaging data
Package width: 190 mm
Package depth: 245 mm
Package weight: 2.05 kg
Package height: 110 mm

Ports & interfaces
EPS power connector (8pin): Yes
Cabling type: NonModular
EPS power connector (4+4 pin): Yes
SATA power cable length: 550, 400, 700
Number of SATA power connectors: 6
Peripheral (Molex) power connectors (4pin): 3
Peripheral (Molex) power cable length: 550, 700 mm, 400
PCI Express power connectors (6+2 pin): 4
PCI Express power cable length: 62 cm
Motherboard power connector: 24pin ATX
Motherboard power cable length: 50 cm

Other features
EPS cable length: 67 cm
