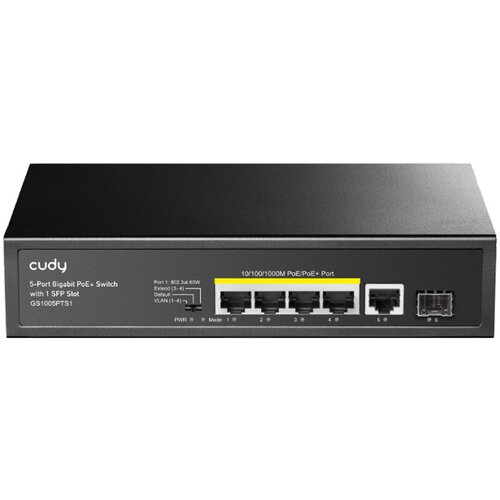

Cudy GS1005PTS1 network switch Gigabit Ethernet (10 /100 /1000) Power over Ethernet (PoE) Black cijene

Design
LED indicators: Link, Power, Activity
Wall mountable: Yes
Rack mounting: Yes
Housing material: Metal
Product colour: Black

Power
Input current: 1.25 A
Output voltage: 52 V
AC input voltage: 100 240 V
Output current: 1.25 A
Power source: AC
Power supply included: Yes

Operational conditions
Storage temperature (TT): 40 85 C
Operating altitude: 0 3048 m
Operating relative humidity (HH): 10 90%
Storage relative humidity (HH): 5 90%
Operating temperature (TT): 20 50 C

Weight & dimensions
Weight: 600 g
Width: 200 mm
Height: 44 mm
Depth: 118 mm

Network
Flow control support: Yes
Cable types supported: Cat3, Cat6e, Cat7e, Cat6, Cat8.1, Cat4, Cat8, Cat6+, Cat5, Cat5e, Cat6a, Cat7
Networking standards: IEEE 802.3af, IEEE 802.3u, IEEE 802.3, IEEE 802.3x, IEEE 802.3z, IEEE 802.3at, IEEE 802.3ab
Copper ethernet cabling technology: 10BASET, 100BASETX, 1000BASETX
Full duplex: Yes
Half duplex: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
VLAN support: Yes

Performance
Mean time between failures (MTBF): 100000 h
Plug and Play: Yes
Fanless: Yes

Packaging data
Package height: 60 mm
Package type: Box
Package weight: 900 g
Package width: 245 mm
Package depth: 190 mm

Packaging content
Cables included: AC
Manual: Yes

Ports & interfaces
Uplink ports quantity: 1
Basic switching RJ45 Ethernet ports quantity: 5
Combo SFP ports quantity: 1
Basic switching RJ45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Power connector: ACin jack
Installed SFP modules quantity: 1

Logistics data
Master (outer) case width: 505 mm
Master (outer) case height: 402 mm
Products per master (outer) case: 20 pc(s)
Master (outer) case net weight: 19 kg
Master (outer) case length: 320 mm

Data transmission
MAC address table: 2000 entries
Switching capacity: 12 Gbit/s
Packet buffer memory: 1 MB
Jumbo frames: 9216
Storeandforward: Yes
Throughput: 8.928 Mpps
Jumbo frames support: Yes

Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget: 120 W
Power over Ethernet plus (PoE+) ports quantity: 1
Power over Ethernet (PoE) power per port: 30 W
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) ports quantity: 4

Safety warning
Warnings: Do not open the case or try to repair it yourself., The product is not suitable for disposal in the regular waste bin. Take your used electronic equipment to a recycling centre in accordance with local regulations.

Optical fiber
Fiber type: Multimode
Switching optical modules type: Gigabit Ethernet
