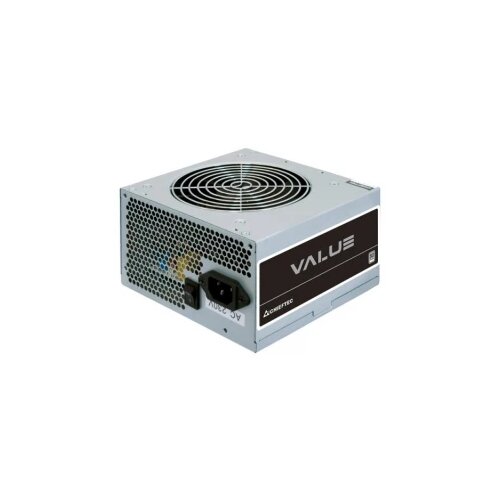

Chieftec CASE PSU ATX 600W /BULK APB-600B8-BK cijene

Design
Fan location: Top
On/off switch: Yes
Cooling type: Active
Product colour: Steel
Fan diameter: 12 cm
Number of fans: 1 fan(s)

Power
Combined power (+5V): 120 W
Max output current (+5V): 20 A
Total power: 600 W
Peak power: 600 W
Combined power (+12V): 552 W
AC input voltage: 200 240 V
AC input frequency: 47 63 Hz
Maximum input current (@220V): 4.5 A
Max output current (+3.3V): 20 A
Max output current (+5Vsb): 2.5 A
Max output current (+12V1): 46 A
Combined power (+3.3V): 120 W
Combined power (+5Vsb): 12.5 W
Combined power (12V): 3.6 W
Max output current (12V): 0.3 A

Weight & dimensions
Depth: 140 mm
Height: 87 mm
Width: 150 mm
Weight: 1.42 kg

Performance
ATX version: 2.3
80 PLUS certification: 80 PLUS
Purpose: PC
Power supply unit (PSU) form factor: ATX

Packaging data
Package weight: 1.56 kg

Certificates
Compliance certificates: RoHS, CE

Ports & interfaces
EPS power connector (8pin): No
Peripheral (Molex) power connectors (4pin): 2
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 55 cm
Peripheral (Molex) power cable length: 500 mm, 150
SATA power cable length: 150, 500 mm
PCI Express power connectors (6+2 pin): 2
Floppy disk drive connector: Yes
Floppy disk drive cable length: 15 cm
EPS power connector (4+4 pin): Yes
Number of SATA power connectors: 4
Cabling type: NonModular

Logistics data
Harmonized System (HS) code: 84733020
