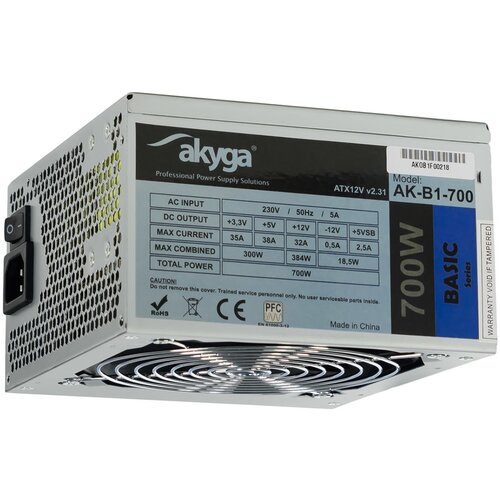

Akyga AK-B1-700 power supply unit 700 W 20+4 pin ATX ATX Grey cijene

Technical details
Sustainability certificates: RoHS

Design
Fan diameter: 12 cm
Fan location: Side
Product colour: Grey
On/off switch: Yes
Cooling type: Active
Number of fans: 1 fan(s)

Power
Max output current (+3.3V): 35 A
Total power: 700 W
Combined power (+5Vsb): 18.5 W
Max output current (+5Vsb): 2.5 A
Combined power (+5V): 300 W
AC input frequency: 50 Hz
Efficiency: 70%
Power protection features: Overheating, Short circuit, Over voltage, Over power, Over current
AC input voltage: 220 230 V
Max output current (+5V): 38 A
Power Factor Correction (PFC) type: Passive
Combined power (+3.3V): 300 W
Combined power (+12V): 384 W
Combined power (12V): 18.5 W
Max output current (12V): 0.5 A
Max output current (+12V): 32 A

Operational conditions
Operating temperature (TT): 5 50 C

Weight & dimensions
Weight: 1.26 kg
Width: 150 mm
Height: 85 mm
Depth: 160 mm
Certification: CE, FCC, RoHS, REACH

Performance
ATX version: 2.31
Power supply unit (PSU) form factor: ATX
Purpose: PC
Mean time between failures (MTBF): 100000 h

Packaging data
Package depth: 260 mm
Package width: 180 mm
Package weight: 1.33 kg
Package height: 95 mm
Package type: Box

Ports & interfaces
Peripheral (Molex) power connectors (4pin): 2
PCI Express power connectors (6+2 pin): 2
SATA power cable length: 150, 300
Motherboard power connector: 20+4 pin ATX
Number of SATA power connectors: 5
Cabling type: NonModular
EPS power connector (4+4 pin): Yes
Peripheral (Molex) power cable length: 300 mm, 150
PCI Express power cable length: 45 cm
Motherboard power cable length: 45 cm

Other features
EPS cable length: 60 cm
