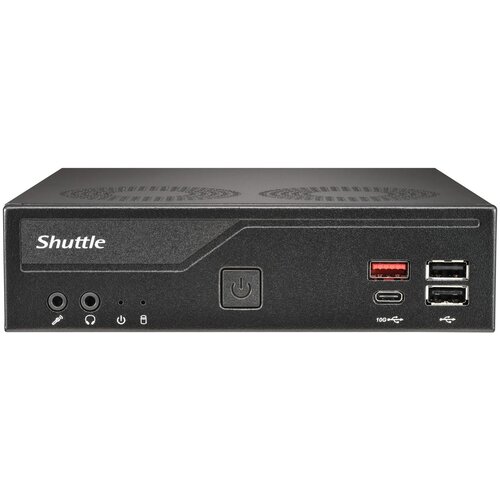

Shuttle Slim PC DH810 , S1851, 1x HDMI (2.1), 1x DP, 1x USB-C (DP), 1x 2.5, 2x M.2, 2x LAN (Intel 1G + 2.5G), 2x COM, 24 /7 permanent operation, incl. VESA cijene

Technical details
Compliance certificates: RoHS, CE, Federal Communications Commission (FCC), BSMI, VCCI, ETL, CB, RCM

Processor
Builtin processor: No

Graphics
Onboard graphics card: Yes

Memory
Supported memory types: DDR5SDRAM
Memory slots type: SODIMM
Number of memory slots: 2
Memory channels: Dualchannel
Supported memory clock speeds: 5600
Maximum internal memory: 96 GB
NonECC: Yes
ECC: No
Memory voltage: 1.1 V

Design
LED indicators: Power, HDD
Housing material: Metal
Cable lock slot: Yes
Cooling type: Active
VESA mounting: Yes
Product type: Mini PC barebone
Cable lock slot type: Kensington
Chassis type: 1.35L sized PC
Product colour: Black

Power
AC adapter output current: 6.32 A
AC input voltage: 100 240 V
Power supply type: External AC adapter
Power supply: 120 W
AC input frequency: 50/60 Hz
Number of power supply units: 1
AC adapter output voltage: 19 V

Operational conditions
Operating temperature (TT): 0 50 C
Operating relative humidity (HH): 10 90%

Weight & dimensions
Depth: 190 mm
Package weight: 2.1 kg
Height: 43 mm
Weight: 1.3 kg
Width: 165 mm

Network
LAN controller: Intel I219, Intel I226
Ethernet LAN: Yes
WiFi: No

Performance
Processor socket: LGA 1851 (Socket V1)
Number of processors supported: 1
BIOS type: EFI AMI
Audio output channels: 2.0 channels
Trusted Platform Module (TPM): Yes
Trusted Platform Module (TPM) version: 2.0
Audio chip: Realtek ALC888S

Packaging content
Drivers included: Yes
Quick start guide: Yes
Power cord included: Yes
AC adapter included: Yes

Software
Windows operating systems supported: Windows 11
Linux operating systems supported: Yes

Audio
Builtin speaker(s): No

Storage
Supported storage drive types: HDD & SSD
Storage drive sizes supported: 2.5
NVMe: Yes
Storage drive interface: M.2, PCI Express, Serial ATA
Number of storage drives supported: 2
SSD form factor: M.2

Ports & interfaces
USB 2.0 ports quantity: 4
Microphone in: Yes
DisplayPort version: 1.4a
Ethernet LAN (RJ45) ports: 2
USB 3.2 Gen 2 (3.1 Gen 2) TypeA ports quantity: 1
DisplayPorts quantity: 1
Headphone outputs: 1
HDMI version: 2.1
DCin jack: Yes
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) TypeA ports quantity: 2
USB4 Gen 2x2 ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) TypeC ports quantity: 1
Serial ports quantity: 2

Logistics data
Harmonized System (HS) code: 84733080

Sustainability
Sustainability certificates: ENERGY STAR, ErP
