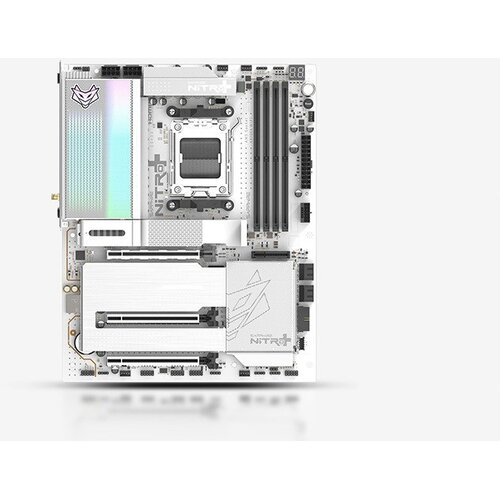

Sapphire NITRO+ X870EA PHANTOMLINK P.E Motherboard cijene

Processor
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 9000 Series, AMD Ryzen 8000 Series
Processor manufacturer: AMD
Supported processor sockets: Socket AM5
Processor socket: Socket AM5

Graphics
Parallel processing technology support: Not supported

Features
Product colour: Black, Silver
Audio chip: Realtek ALC897
Motherboard form factor: ATX
Motherboard chipset family: AMD
Motherboard chipset: AMD X870E
Audio output channels: 5.1 channels
Windows operating systems supported: Windows 11

Memory
Maximum internal memory: 256 GB
Memory slots type: DIMM
Supported memory types: DDR5SDRAM
Memory channels: Dualchannel
Number of memory slots: 4
Maximum internal memory per slot: 64 GB
Supported memory clock speed (max): 8400 MHz

Weight & dimensions
Depth: 244 mm
Width: 305 mm

Network
Bluetooth: Yes
WiFi: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN: Yes
WiFi standards: 802.11 be
Top WiFi standard: WiFi 7 (802.11be)
Bluetooth version: 5.4

Internal I/O
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 2.0 connectors: 2
ATX Power connector (24pin): Yes
Serial port headers: 1
Number of SATA III connectors: 4
Front panel audio connector: Yes
12V power connector: Yes
Front panel connector: Yes
Number of chassis fan connectors: 3
CPU fan connector: Yes
RGB LED pin header: Yes
Number of water pump connectors: 1
Number of CPU fan connectors: 1
Number of RGB LED pin headers: 5

BIOS
Clear CMOS jumper: No

Storage controllers
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: PCI Express 4.0, PCI Express 5.0, SATA III
Number of storage drives supported: 3

Rear panel I/O ports
Headphone outputs: 1
USB 2.0 ports quantity: 2
WiFiAP antenna jack: 2
Ethernet LAN (RJ45) ports: 1
USB 3.2 Gen 2 (3.1 Gen 2) TypeA ports quantity: 4
Microphone in: Yes
Linein: No
USB connector type: USB TypeC, USB TypeA
HDMI ports quantity: 1

Expansion slots
Number of M.2 (M) slots: 4
PCI Express x4 (Gen 4.x) slots: 2
PCI Express x16 (Gen 5.x) slots: 1
1st M.2 highest PCI Express generation: 5.0
1st M.2 largest key size: 2280
2nd M.2 highest PCI Express generation: 5.0
2nd M.2 largest key size: 2280
