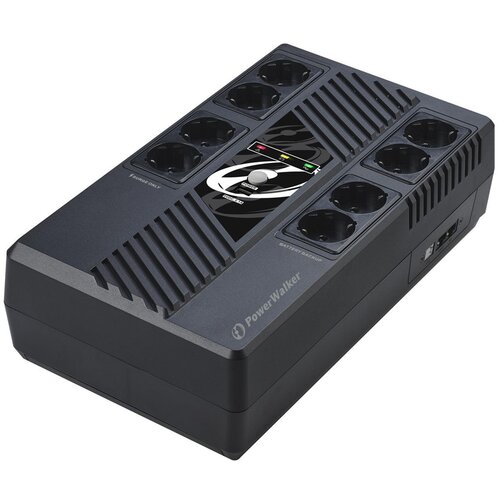

Opis i karakteristike
Features
Output power capacity: 1 kVA
Response time: 6 ms
Power protection features: Overdischarge, Overload, Overcharge
Noise level: 40 dB
Input frequency: 50/60 Hz
Input operation voltage (min): 170 V
Input operation voltage (max): 280 V
Output power: 600 W
Waveform: Sine
UPS topology: LineInteractive
Output operation voltage (max): 230 V
Output power factor: 0.6
Surge energy rating: 156 J
Design
Form factor: Compact
Product colour: Black
LED indicators: Yes
Weight & dimensions
Weight: 6.4 kg
Depth: 345 mm
Width: 200 mm
Height: 100 mm
Packaging data
Package height: 269 mm
Package width: 146 mm
Package weight: 7 kg
Package depth: 425 mm
Ports & interfaces
Ethernet LAN (RJ45) ports: 1
RS232 ports: 1
USB port: Yes
AC outlets quantity: 8 AC outlet(s)
Serial interface: Yes
AC outlet types: Type E
USB port type: USB TypeB
Battery
Battery capacity: 9 Ah
Number of batteries supported: 1
Typical backup time at half load: 1.2 min
Typical backup time at full load: 0.1 min
Battery recharge time: 8 h
Battery voltage: 12 V
Charging current: 1 A
Logistics data
Harmonized System (HS) code: 85078000
