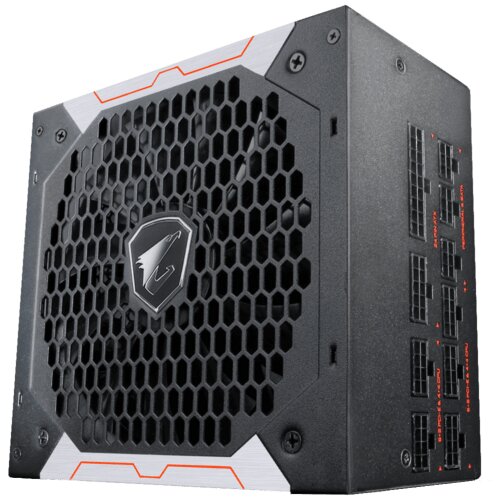

Gigabyte Napajanje AORUS P750W 80+ GOLD Modular Active PFC, fan 135 cijene

Design
Fan location: Top
Product colour: Black
On/off switch: Yes
Fan diameter: 13.5 cm
Number of fans: 1 fan(s)

Power
AC input voltage: 100 240 V
Power protection features: Overheating, Over power, Under voltage, Over current, Short circuit, Over voltage
Combined power (12V): 3.6 W
Power factor: 0.9
Hold time: 16 ms
Power Good signal delay range: 100 150 ms
Power Factor Correction (PFC) type: Active
Combined power (+12V): 744 W
Combined power (+3.3V): 120 W
Combined power (+5V): 120 W
Efficiency: 90%
Total power: 750 W
Combined power (+5Vsb): 15 W
Input current: 10 A
Max output current (+5Vsb): 3 A
Max output current (+5V): 20 A
Max output current (+12V): 62 A
AC input frequency: 47 63 Hz
Max output current (12V): 0.3 A
Max output current (+3.3V): 20 A

Weight & dimensions
Height: 86 mm
Width: 150 mm
Depth: 160 mm

Performance
Mean time between failures (MTBF): 100000 h
80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 2.31

Ports & interfaces
PCI Express connector: Yes
Peripheral (Molex) power connectors (4pin): 6
Floppy disk drive connector: Yes
ATX power connector (20+4 pin): Yes
SATA power cable length: 750, 550, 450, 650
Motherboard power cable length: 65 cm
PCI Express power connectors (6+2 pin): 6
Number of SATA power connectors: 6
Floppy drive power connector: 2
Motherboard power connector: 20+4 pin ATX
Cabling type: FullyModular
EPS power connector (8pin): Yes
CPU power connector (4+4 pin): Yes

Logistics data
Harmonized System (HS) code: 84733020
