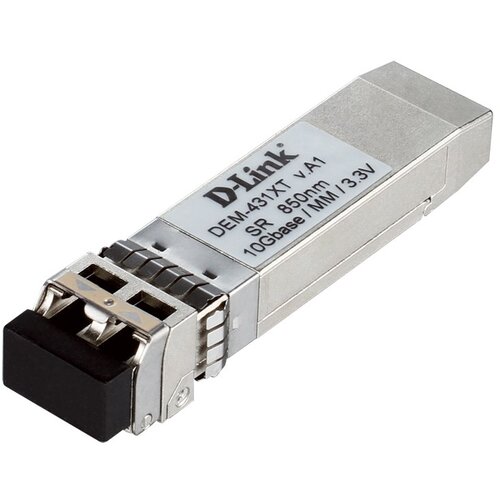

D-link DEM-431XT network transceiver module Fiber optic 10000 Mbit /s SFP+ 850 nm cijene

Features
Mean time between failures (MTBF): 3960000 h
Product colour: Metallic, Gold
HotPlug support: Yes

Power
Maximum current: 300 A
Maximum voltage: 3.3 V

Operational conditions
Operating relative humidity (HH): 5 85%
Storage relative humidity (HH): 5 95%
Operating temperature (TT): 0 70 C
Storage temperature (TT): 40 85 C

Weight & dimensions
Weight: 18 g
Height: 56.5 mm
Depth: 11.8 mm
Width: 14.8 mm

Performance
Fiber optic connector: LC
Wavelength: 850 nm
SFP transceiver type: Fiber optic
Networking standards: IEEE 802.3ae
Maximum transfer distance: 550 m
Fiber ethernet cabling technology: 10GBASE
Tx power (min): 6.5 dBmW
Interface type: SFP+
Fiber cable diameters supported (core/cladding): 62.5/125 m, 50/125 m
Maximum data transfer rate: 10000 Mbit/s
Singlemode fiber (SMF) supported: No
SFP transceiver standard: SR
Rx power (min): 11.1 dBmW
Link budget: 10.1 dB
Tx power (max): 1 dBmW
Rx power (max): 1 dBmW
Duplex system: Full
Multimode fiber (MMF) supported: Yes

Packaging data
Package depth: 131 mm
Package width: 74 mm
Package height: 49 mm
Package weight: 64 g
Certification: CE, FCC, VCCI, CTick, MSA

Certificates
Safety: UL, TUV, CDRH
Compliance certificates: RoHS

Logistics data
Shipping (inner) case gross weight: 4.2 kg
Shipping (inner) case length: 36 cm
Shipping (inner) case width: 26 cm
Pallet gross width: 122 cm
Products per shipping (inner) case: 50 pc(s)
Shipping (inner) case height: 31 cm
Pallet gross length: 102 cm
Harmonized System (HS) code: 85369010
Pallet height (sea): 199 cm
Products per pallet (air): 3000 pc(s)
Pallet height (air): 199 cm
Master (outer) cases per pallet (sea): 60 pc(s)
Master (outer) cases per pallet (air): 60 pc(s)
Pallet gross weight (air): 272 kg
Shipping (inner) case net weight: 3.2 kg
Pallet gross weight (sea): 272 kg
Products per pallet (sea): 3000 pc(s)
