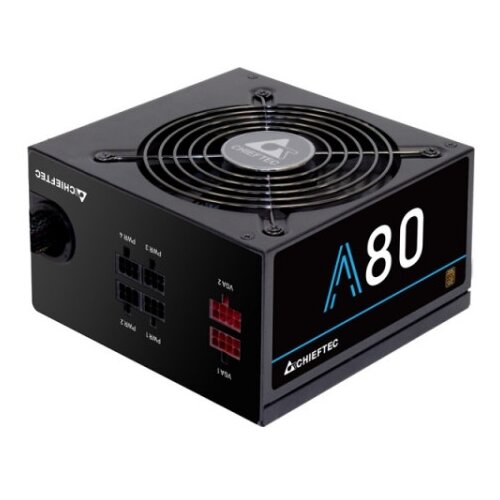

Chieftec CTG-750C power supply unit 750 W ATX Black cijene

Design
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Fan location: Top
Product colour: Black

Power
Combined power (+5Vsb): 15 W
Power protection features: Overheating, Overload, Short circuit, Over voltage, Under voltage, Over current
Max output current (+12V2): 35 A
Efficiency: 85%
Combined power (12V): 3.6 W
AC input frequency: 50 Hz
Max output current (+5V): 22 A
Total power: 750 W
Combined power (+5V): 130 W
Power factor: 0.9
Maximum input current (@110V): +12V1,+12V2,+3.3V,+5V,+5Vsb,12V
Max output current (+5Vsb): 3 A
Max output current (+12V1): 35 A
AC input voltage: 230 V
Input current: 6 A
Max output current (+3.3V): 22 A
Combined power (+12V): 648 W
Max output current (12V): 0.3 A
Combined power (+3.3V): 130 W
Power Factor Correction (PFC) type: Active

Weight & dimensions
Depth: 140 mm
Height: 87 mm
Width: 150 mm
Certification: CE, CB, FCC
Purpose: PC

Performance
RoHS compliance: Y
Power supply unit (PSU) form factor: ATX
80 PLUS certification: 80 PLUS
Mean time between failures (MTBF): 100000 h
ATX version: 2.3
Cabling type: Modular

Ports & interfaces
Number of SATA power connectors: 6
PCI Express power connectors (6+2 pin): 2
CPU power connectors (8pin): 1
Peripheral (Molex) power connectors (4pin): 4
CPU P4 connector (4pin): 1
Floppy drive power connector: 2
Motherboard power connector: 24pin ATX
EPS power connector (8pin): Yes
