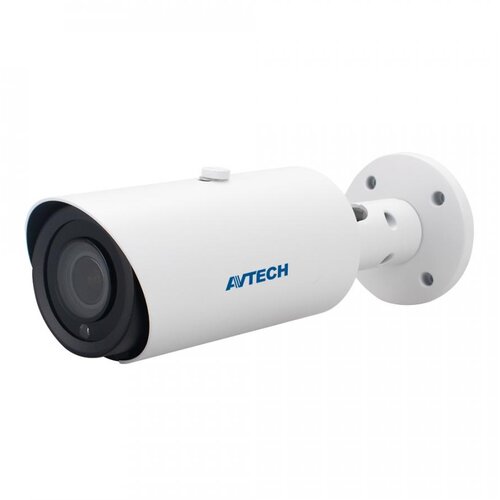

5MPX MotorZoom IP Bullet kamera AVTECH DGM5546SVAT sa IR osvjetljenjem do 50 i maksimalnom video rezolucijom 2560 x 1944 px . Moderan dizajn, zahvaljujući kojem se kamera uklapa u svako okruženje. Prikladno za unutarnju i vanjsku upotrebu (IP66 zaštita). Objektiv Objektiv: Motorizirani f2.8 12 mm / F1.6 F2.2.
GLAVNA FUNKCIJA
TEHNIČKE SPECIFIKACIJE
Device |
| |
Image Sensor | 1/2.8" SONY CMOS | |
Max. Resolution | 2560x1944 | |
Lens | f2.8 12mm / F1.6 F2.2 | |
Viewing Angle | Tele 40 Wide 117 (Diagonal) | |
Min Illumination | 0.001 Lux (IR LED off), 0 Lux (IR LED on) | |
Shutter Speed | AUTO, 1/25s 1/100000s | |
IR LED | 20 units | |
IR Effective Distance | Up to 50 meters | |
Day / Night | YES | |
WDR Mode | YES (120dB) | |
RTC (realtime clock) | YES | |
MicroSD Card Slot | YES (up to 256GB) | |
Video |
| |
Compression | H265 / H.264 | |
Video Resolution
| Main Stream | 5MP (2592x1944) / 4MP (2560x1440) / 3MP (2304x1296) / 2MP (1080P) / 720P |
Sub Stream | D1 / VGA / 640x360 / 480x360 / CIF | |
Frame Rate | 5MP @ 25FPS | |
Video Profile | High profile / Main profile / Base profile | |
Multiple Video Streaming | 2 streams | |
Bitrate Control | 32Kbps 8Mbps, VBR/CBR | |
Image Enhancement | WDR / BLC / HLC / 2D DNR / 3D DNR / AWB / MWB / AGC | |
Day / Night Switch | Auto / Color / (B/W) / Timing | |
Forced Antiflicker | YES | |
Defog | YES | |
White Balance | Auto / Manual | |
Image Orientation | Rotate / Mirror | |
Privacy Mask | YES | |
Text Overlay | YES | |
OSD Title | Location / font size / text configurable; text input (English & Chinese characters) and image upload (BMP) supported | |
Audio |
| |
Microphone builtin | YES | |
Line out | YES | |
Encoding | G.711u / G.711a | |
Audio Adjustment | YES | |
Alarm & Event |
| |
Alarm in | YES | |
Alarm out | YES | |
Detection Mode | Motion / Human / Vehicle / Alarm Detection | |
Detection Schedule | YES | |
Motion Detection Area | 1x1, 2x2, 3x2, 3x3, 4x3, 4x4, 8x8, 16x16, 22x18 | |
Human / Vehicle Detection Alert | Audio alert with customized mp3 audio file(s) |
