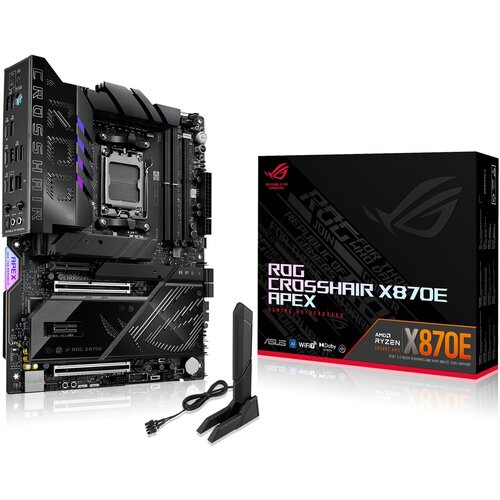

Asus ROG CROSSHAIR X870E APEX AMD X870E Socket AM5 ATX cijene

Processor
Processor manufacturer: AMD
Compatible processor series: AMD Ryzen 8000 Series, AMD Ryzen 7000 Series, AMD Ryzen 9000 Series
Processor socket: Socket AM5
Supported processor sockets: Socket AM5

Graphics
Onboard graphics card: No
Parallel processing technology support: Not supported

Features
Windows operating systems supported: Windows 11
Product colour: Black
Audio output channels: 7.1 channels
Motherboard chipset family: AMD
Motherboard form factor: ATX
Motherboard chipset: AMD X870E

Memory
ECC ompatibility: ECC & NonECC
Memory slots type: DIMM
Memory channels: Dualchannel
Maximum internal memory: 128 GB
Supported memory types: DDR5SDRAM
Unbuffered memory: Yes
Number of memory slots: 2

Weight & dimensions
Width: 305 mm
Depth: 244 mm

Network
Bluetooth version: 5.4
Top WiFi standard: WiFi 7 (802.11be)
WiFi: Yes
Ethernet LAN: Yes
WiFi standards: WiFi 7 (802.11be)
Ethernet interface type: 5 Gigabit Ethernet
Bluetooth: Yes

Internal I/O
RGB LED pin header: Yes
Number of RGB LED pin headers: 3
12V power connector: Yes
USB 3.2 Gen 2x2 connectors: 2
ATX Power connector (24pin): Yes
Number of SATA III connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
EPS power connector (8pin): Yes
CPU fan connector: Yes
USB 2.0 connectors: 2
Front panel connector: Yes
Front panel audio connector: Yes
Number of chassis fan connectors: 2

BIOS
BIOS type: UEFI AMI

Packaging data
Package depth: 312 mm
Package width: 370 mm
Package weight: 4.16 kg
Package height: 108 mm

Packaging content
Antenna included: Yes
Cables included: SATA
Screws included: Yes
Drivers included: Yes

Storage controllers
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 4
RAID support: Yes
RAID levels: 10, 0, 1, 5
Number of storage drives supported: 9
Supported storage drive types: HDD & SSD

Rear panel I/O ports
WiFiAP antenna jack: 1
USB4 Gen 3x2 ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) TypeC ports quantity: 1
PS/2 ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) TypeA ports quantity: 5
Ethernet LAN (RJ45) ports: 1
USB 3.2 Gen 1 (3.1 Gen 1) TypeA ports quantity: 2
S/PDIF out port: Yes

Expansion slots
2nd M.2 highest PCI Express generation: 5.0
PCI Express x16 (Gen 4.x) slots: 2
2nd M.2 largest key size: 2280
3rd M.2 highest PCI Express generation: 5.0
4th M.2 highest PCI Express generation: 4.0
3rd M.2 largest key size: 2280
PCI Express x16 (Gen 5.x) slots: 2
4th M.2 largest key size: 22110
1st M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 5.0
PCI Express x4 (Gen 4.x) slots: 1
5th M.2 largest key size: 22110
5th M.2 highest PCI Express generation: 4.0
Number of M.2 (M) slots: 5
PCI Express x1 (Gen 3.x) slots: 1
