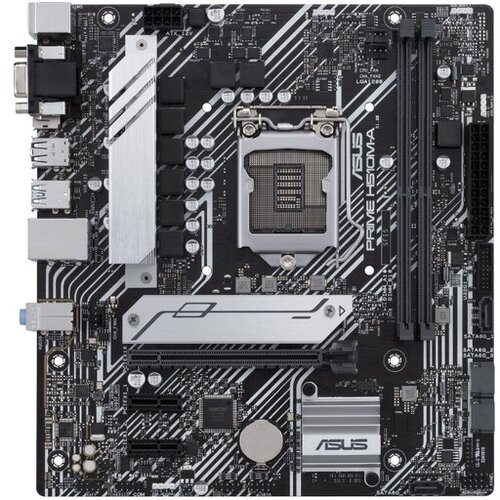

Asus matična ploča PRIME 1200 H510M-A cijene

Processor
Processor socket: LGA 1200 (Socket H5)
Processor manufacturer: Intel
Supported processor sockets: LGA 1200 (Socket H5)
Compatible processor series: Intel Core i7, Intel Core i9, Intel Pentium Gold, Intel Core i3, Intel Core i5, Intel Celeron

Graphics
Parallel processing technology support: Not supported

Features
Motherboard chipset: Intel H510
Motherboard form factor: micro ATX
Windows operating systems supported: Windows 10 x64
Audio output channels: 7.1 channels
Motherboard chipset family: Intel

Memory
Memory slots type: DIMM
Supported memory types: DDR4SDRAM
Number of memory slots: 2
Supported memory clock speed (max): 3200 MHz
Supported memory clock speeds: 2400, 2800, 3000, 2133 MHz, 3200, 2666, 2933
Unbuffered memory: Yes
Maximum internal memory: 64 GB
Memory channels: Dualchannel
ECC ompatibility: NonECC

Weight & dimensions
Depth: 211 mm
Width: 226 mm

Network
Ethernet interface type: Gigabit Ethernet
Ethernet LAN: Yes
WiFi: No

Internal I/O
Audio connector: Yes
RGB LED pin header: Yes
12V power connector: Yes
S/PDIF out connector: Yes
EPS power connector (8pin): Yes
TPM connector: Yes
USB 2.0 connectors: 3
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 4
Number of chassis fan connectors: 2
ATX Power connector (24pin): Yes
Front panel audio connector: Yes
CPU fan connector: Yes
Number of COM connectors: 1

BIOS
BIOS type: UEFI AMI

Packaging data
Package width: 260 mm
Package weight: 1.03 kg
Package height: 51.5 mm
Package depth: 270 mm

Packaging content
Cables included: SATA

Storage controllers
Number of HDDs supported: 4
Supported storage drive interfaces: M.2, SATA III
Number of storage drives supported: 5
Supported storage drive types: HDD & SSD

Rear panel I/O ports
Linein: Yes
Headphone outputs: 1
VGA (DSub) ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) TypeA ports quantity: 4
HDMI ports quantity: 1
DisplayPorts quantity: 1
USB 2.0 ports quantity: 2
Microphone in: Yes
PS/2 ports quantity: 2
Ethernet LAN (RJ45) ports: 1

Expansion slots
PCI Express x1 (Gen 3.x) slots: 2
Number of M.2 (M) slots: 1

Safety warning
Warnings: Avoid contact with liquids to prevent damage to electronic components., Do not make changes or modifications to the appliance, which may void the warranty or cause damage., Be careful when assembling to avoid damage to electronic components caused by electrostatic discharge.
