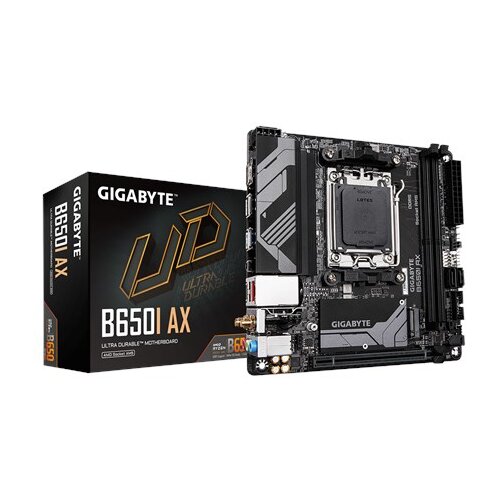

AMD Gigabyte B650I AX 1.0 Processor family Processor socket AM5 DDR5 DIMM Supported hard disk drive interfaces SATA, M.2 Number of SATA connectors 2 cijene

Technical details
Warranty period: 3 year(s)

Processor
Maximum internal memory supported by processor: 96 GB
Compatible processor series: AMD Ryzen 7
Processor socket: Socket AM5
Processor manufacturer: AMD
Maximum number of SMP processors: 1
Supported processor sockets: Socket AM5

Graphics
Parallel processing technology support: Not supported
Maximum resolution: 7680 x 4320 pixels
Discrete graphics support: Yes
HDCP: Yes
DirectX version: 12.0

Features
Motherboard form factor: mini ITX
PC health monitoring: Voltage, Water cooling, Temperature, Fan
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Motherboard chipset family: AMD
Component for: PC
Audio output channels: 7.1 channels
Audio chip: Realtek ALC897
Product colour: Bronze
Motherboard chipset: AMD B650

Memory
Memory slots type: DIMM
Number of memory slots: 2
Memory channels: Dualchannel
Supported memory types: DDR5SDRAM
Supported memory clock speed (max): 6400 MHz
Supported memory module capacities: 8GB, 48GB, 32GB, 16GB, 1GB, 2GB, 4GB, 12GB
Supported memory clock speeds: 4400, 6000, 6200, 5200, 4800, 6400, 5600
Maximum internal memory: 96 GB
Unbuffered memory: Yes
NonECC: Yes

Weight & dimensions
Depth: 170 mm
Height: 35 mm
Width: 170 mm

Network
WLAN controller model: Realtek RTL8852CE
WiFi standards: 802.11a, WiFi 6 (802.11ax), WiFi 5 (802.11ac), 802.11g, 802.11b, WiFi 4 (802.11n)
WiFi: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN: Yes
Top WiFi standard: WiFi 6E (802.11ax)
Bluetooth version: 5.3
Bluetooth: Yes
LAN controller: Realtek RTL8125

Internal I/O
Number of EATX power connectors: 1
RGB LED pin header: Yes
12V power connector: Yes
Front panel connector: Yes
USB 2.0 connectors: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
CPU fan connector: Yes
EPS power connector (8pin): Yes
ATX Power connector (24pin): Yes
Front panel audio connector: Yes
Number of SATA III connectors: 2

BIOS
Clear CMOS jumper: Yes
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
ACPI version: 5.0
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit

Packaging data
Package depth: 180 mm
Package height: 65 mm
Package width: 222 mm
Package weight: 790 g
Bundled software: Norton Internet Security (OEM version) LAN bandwidth management software

Packaging content
Cables included: SATA
Antenna included: Yes
Batteries included: Yes

Storage controllers
Number of storage drives supported: 3
Number of HDDs supported: 2
RAID levels: 1, 10, 0, 5
RAID support: Yes
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) TypeC ports quantity: 1
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) TypeA ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) TypeA ports quantity: 1
HDMI version: 2.1
Headphone outputs: 1
WiFiAP antenna jack: 2
Microphone in: Yes
Ethernet LAN (RJ45) ports: 1
DisplayPort version: 1.4
USB connector type: USB TypeA, USB TypeC
DisplayPorts quantity: 1
USB 2.0 ports quantity: 3

Expansion slots
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 1

Battery
Number of battery cells: 1
Battery technology: LithiumManganese Dioxide (LiMnO2)
Battery weight: 3 g
Battery type: CR2032
Lithium weight per battery: 0.07 g
