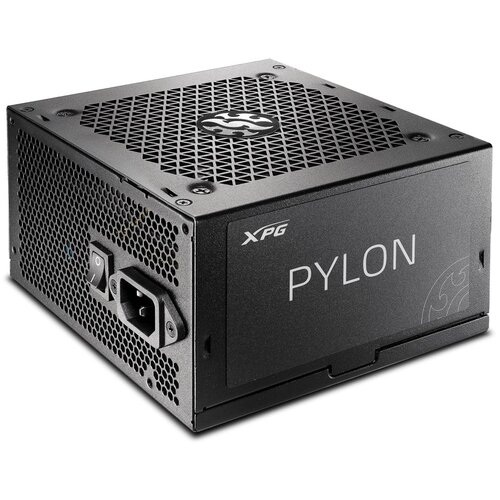

XPG PYLON 550W Power Supply cijene

Technical details
Sustainability compliance: Yes
Sustainability certificates: ErP

Design
Product colour: Black
Number of fans: 1 fan(s)
Fan diameter: 12 cm
Cooling type: Active

Power
Power protection features: Short circuit, Over voltage, Over power, Overheating, Under voltage, Over current
Total power: 550 W
Max output current (+12V): 45.5 A
Max output current (12V): 0.3 A
Power factor: 0.99
Combined power (12V): 3.6 W
Max output current (+5Vsb): 2.5 A
AC input voltage: 100 240 V
Combined power (+5V): 110 W
AC input frequency: 50 60 Hz
Max output current (+3.3V): 20 A
Input current: 8/4 A
Combined power (+3.3V): 110 W
Power Factor Correction (PFC) type: Active
Combined power (+5Vsb): 12.5 W
Max output current (+5V): 20 A
Combined power (+12V): 546 W

Weight & dimensions
Depth: 150 mm
Height: 86 mm
Width: 140 mm

Performance
Bearing technology: FDB
80 PLUS certification: 80 PLUS Bronze
Mean time between failures (MTBF): 100000 h
Power supply unit (PSU) form factor: ATX
ATX version: 2.4
Purpose: PC

Packaging content
Cables included: AC
Certification: CE / CB(62368+60950) / FCC(IC) / EAC / CCC / TUV / cTUVus / TUVS / RCM / NOM / BSMI / KC

Certificates
Compliance certificates: RoHS

Ports & interfaces
EPS power connector (4+4 pin): Yes
Peripheral (Molex) power connectors (4pin): 1
Motherboard power connector: 24pin ATX
Cabling type: NonModular
PCI Express power connectors (6+2 pin): 2
Number of SATA power connectors: 5
ATX Power connector (24pin): Yes

Logistics data
Harmonized System (HS) code: 84733020

Safety warning
Warnings: The product is not suitable for disposal with municipal waste dispose of in accordance with local regulations., Avoid contact of the product with water or other liquids., Do not open the case risk of electric shock.
